Pulp Mill Assets Available For Immediate Sale

Chetwynd, British Columbia, Canada

Featuring:

Pulp Process

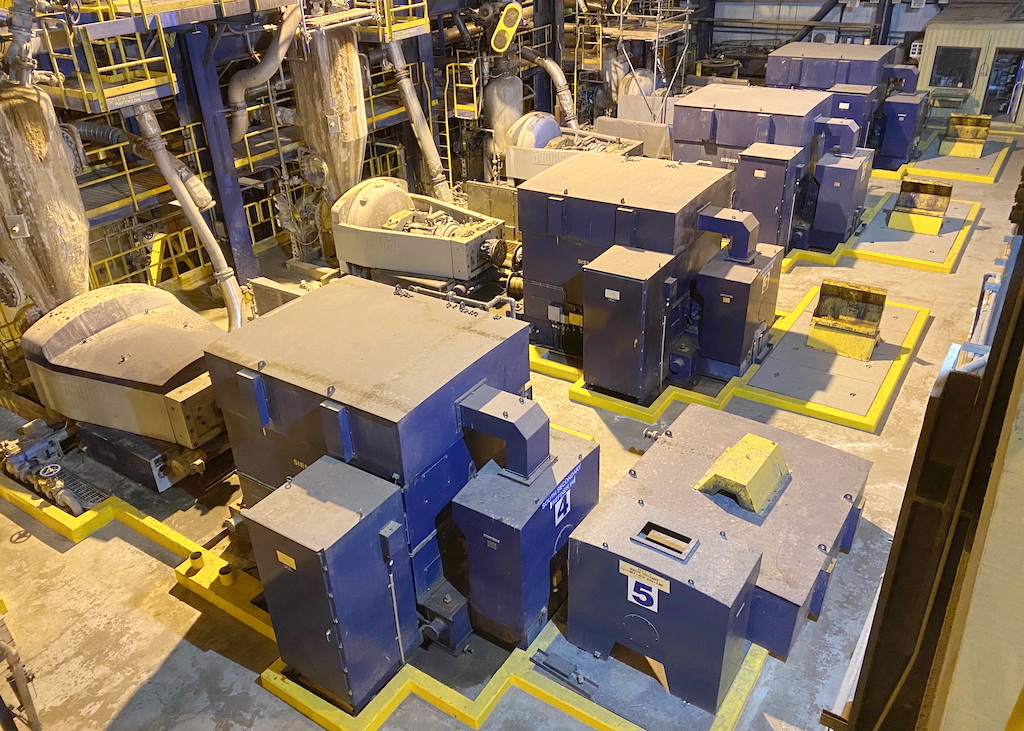

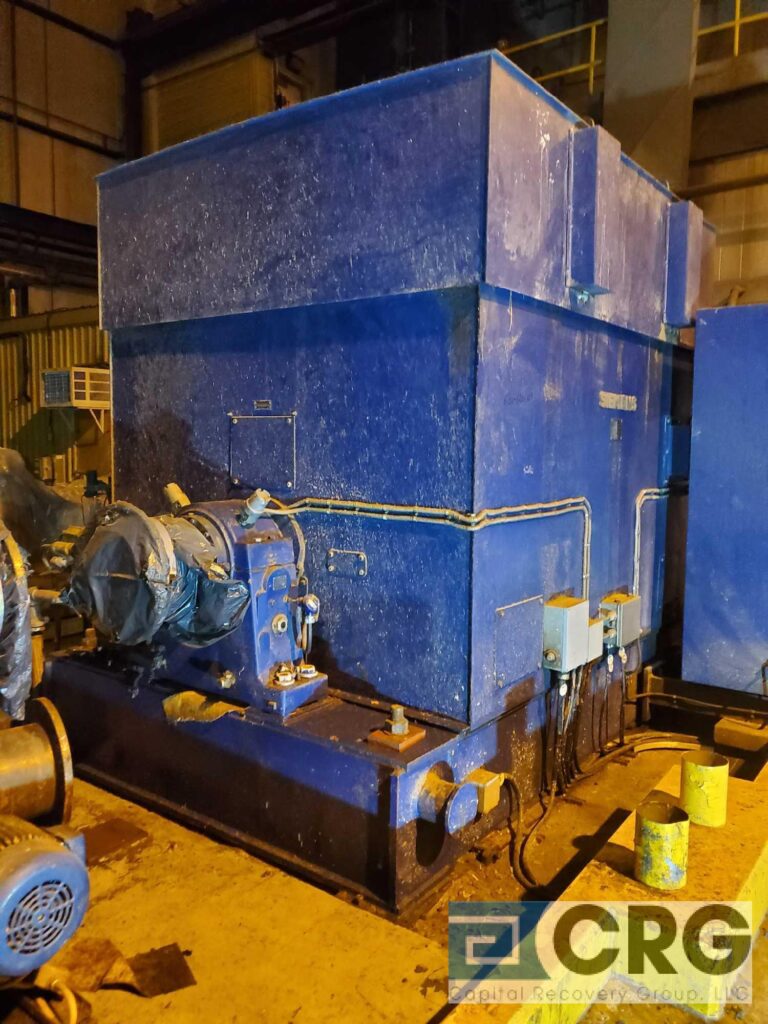

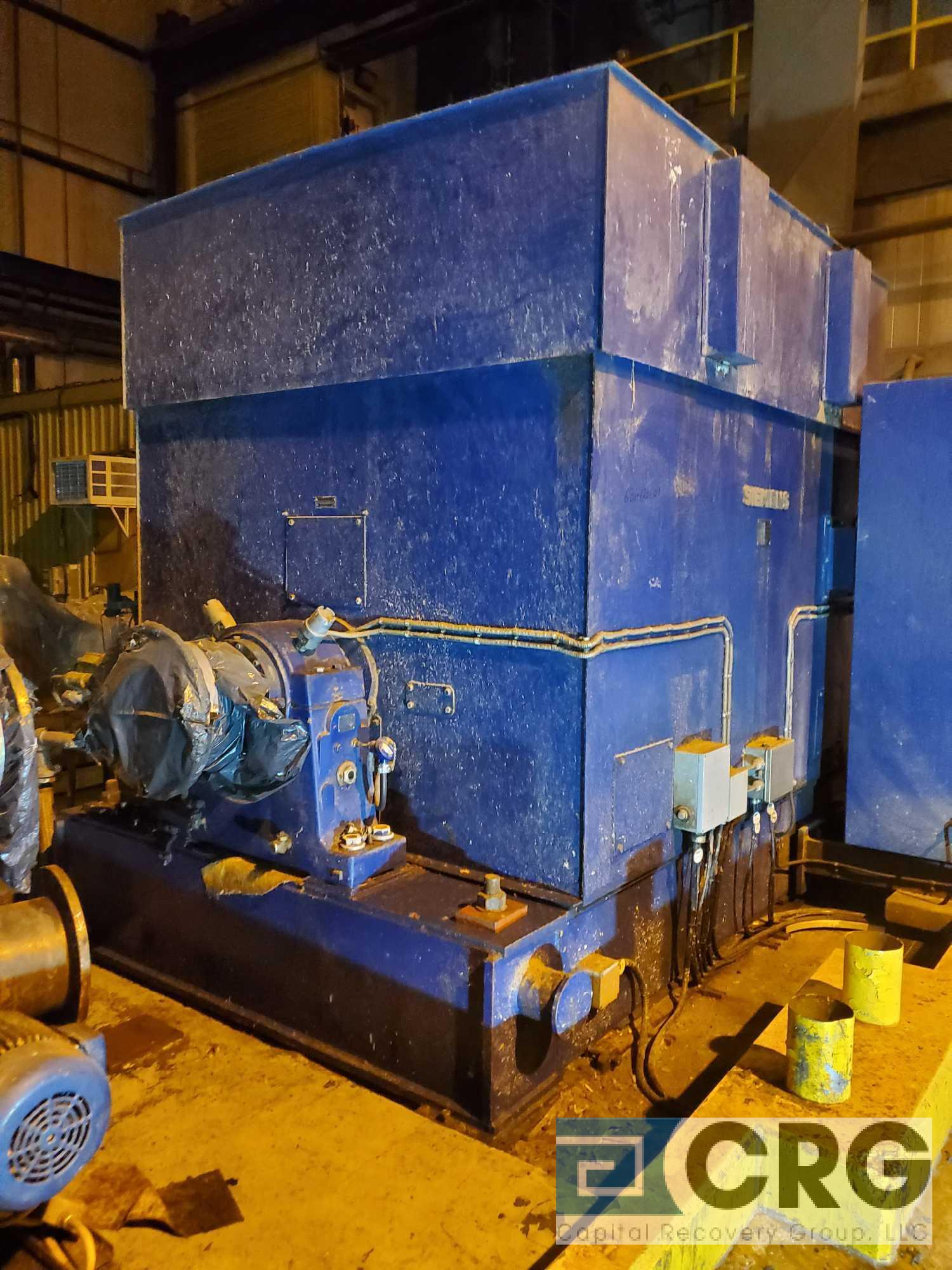

  • (4) HYMAC HSD-64 Sn 631-120-6865 64″ TMP refiner including Siemens Type 1DL 7641-8FF-82-Z 14,000 HP 13,800 V 1,800 RPM water cooled drive motor, with Siemens exciter panel, hydraulic and auto-lube units, agitated cyclone feeder, control console [177-181]

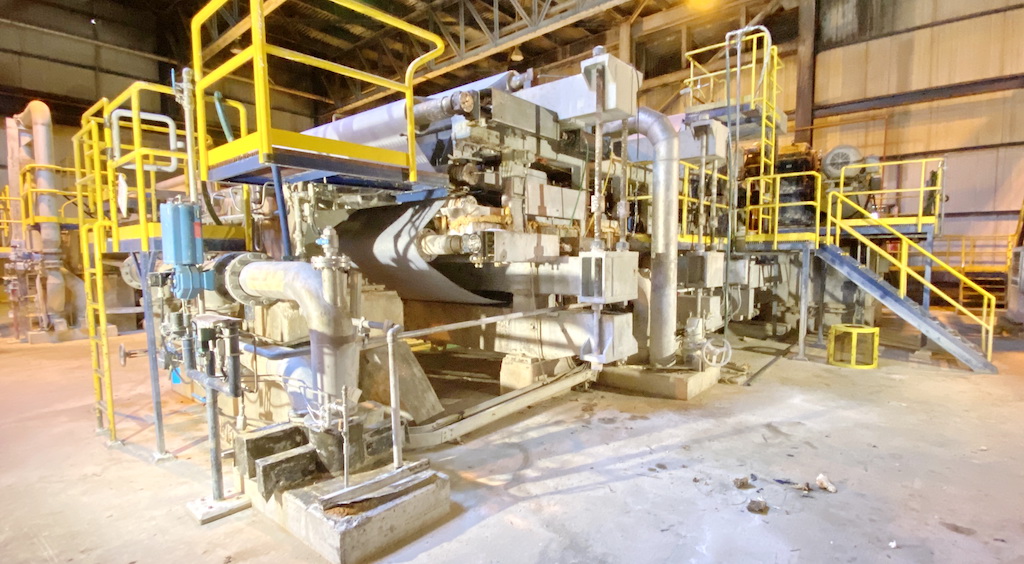

  • (2) HYMAC twin wire de-watering press Mn PT-13 5, 12′ width (3) tension rolls, (3) pinch rolls, drive roll set with dual 150 HP drives, Hymac 345SR 5.636:1 139 HP rated gear reducers, (replacement drive roll in stores), Nilsen end stage shredding roll, control cabinet [Lots 79, 80]

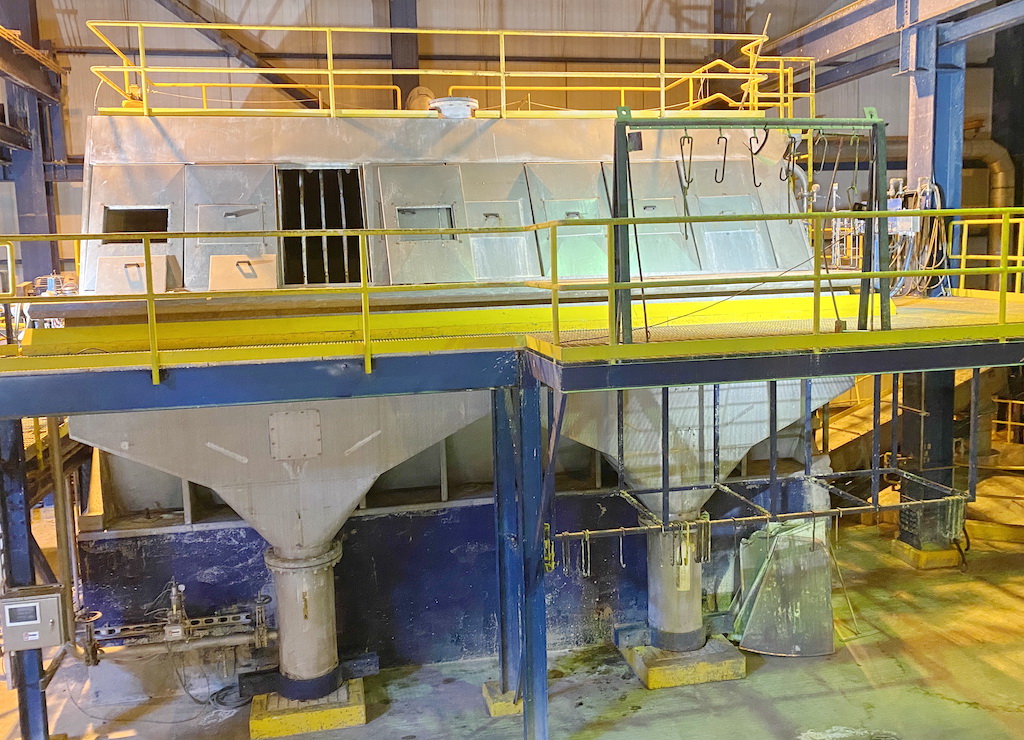

  • CELLECO 316 stainless steel disk filter/thickener, (36) 12′ diameter segmented discs with stainless steel mesh, PLC controls, large assortment of spare new disc segments in crates [Lot 91]
  • Lot of assorted CELLECO Cleanpac 316 stainless steel cleaning banks with PVC cones including (3) 72 cone, (1) 28 cone, (1) 10 cone, and (1) 7 cone [Lot 114]

Wood Room

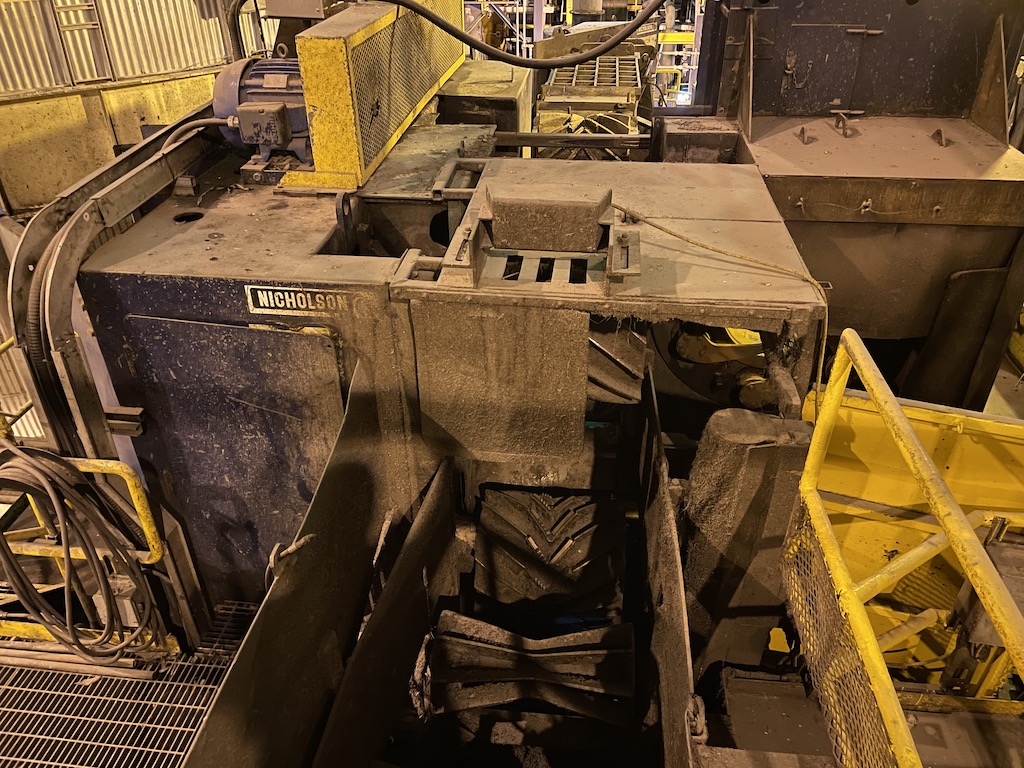

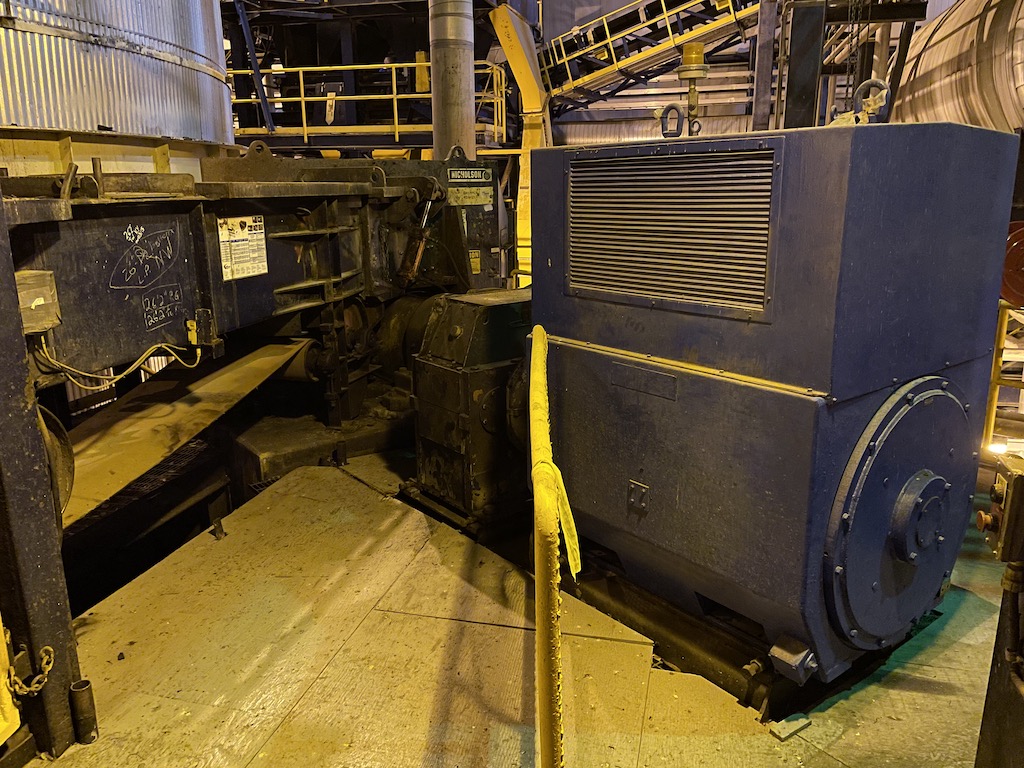

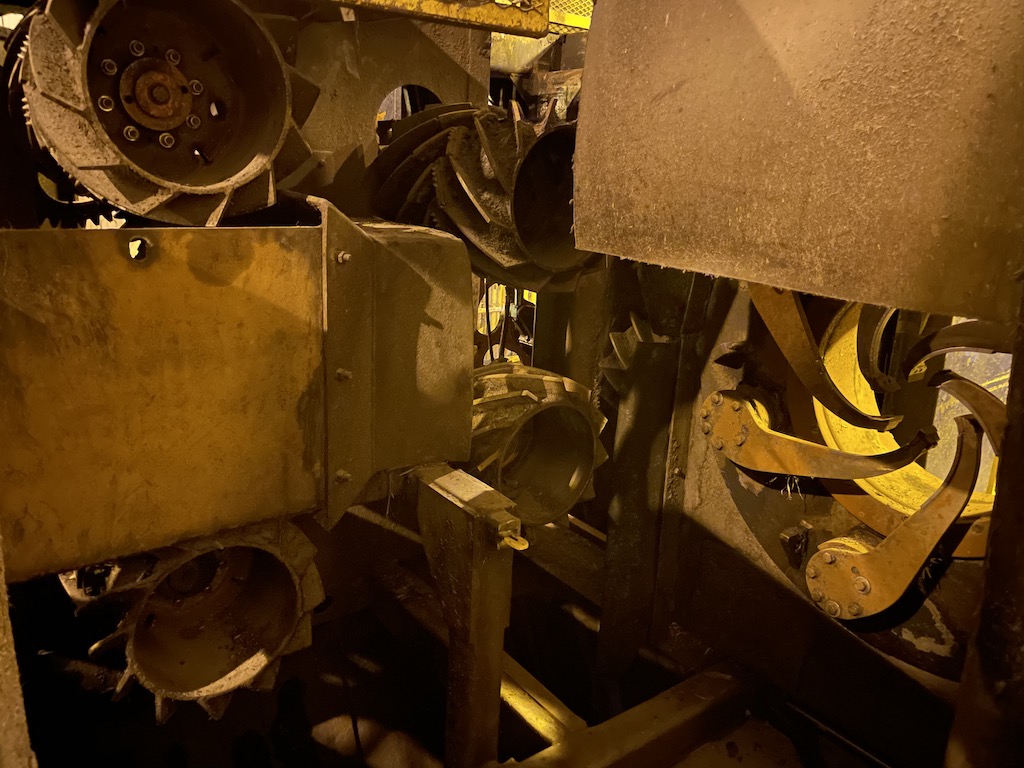

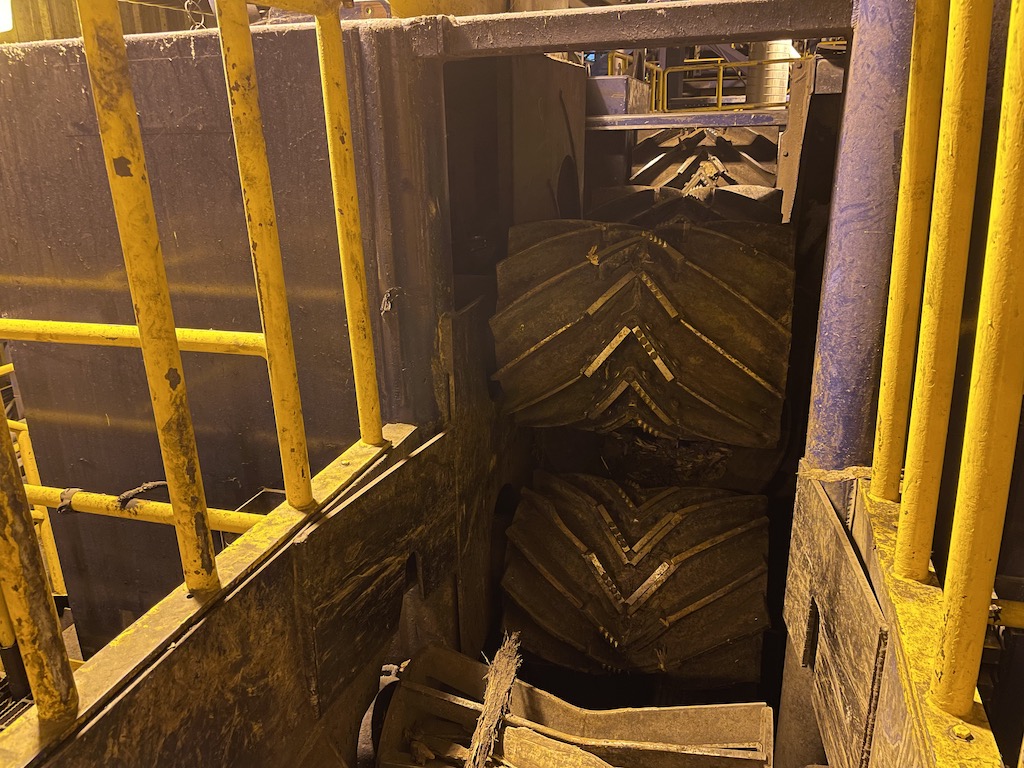

  • (2) NICHOLSON debarking line including dual drag chain log feeder decks and lifts, 10′ X 40′ each with auto-index log feed, electronic metal detector, 45″ X 32″ aperture over 12′ X 34″ wide belt conveyor, hydraulic reject log kicker with 8′ X 40′ drag chain jog reject discharge conveyor, Nicholson Mn A5A -27-A5-RH hydraulic ring log debarker, twin feed-work -grippers with infeed conveyor, Nicholson Mn 96-12K-SOS Sn 5944, 96″ hydraulic disc chipper with Siemens Type RGS 1,250 HP, 4,000V, 1176 RPM drive motor, Falk Mn 2140Y1-L 1200 RPM input/435.1 output, Rader chip feeder Mn 30 X 35 ESW  Sn E1192, Hymac 2014 stainless steel screw feeder with 10HP drive, master control tower with Siemens Simatec Multi-panel PLC controls [Lot 53 incl 54-61 = wet line, Lot 62 incl 63-71 = dry line]

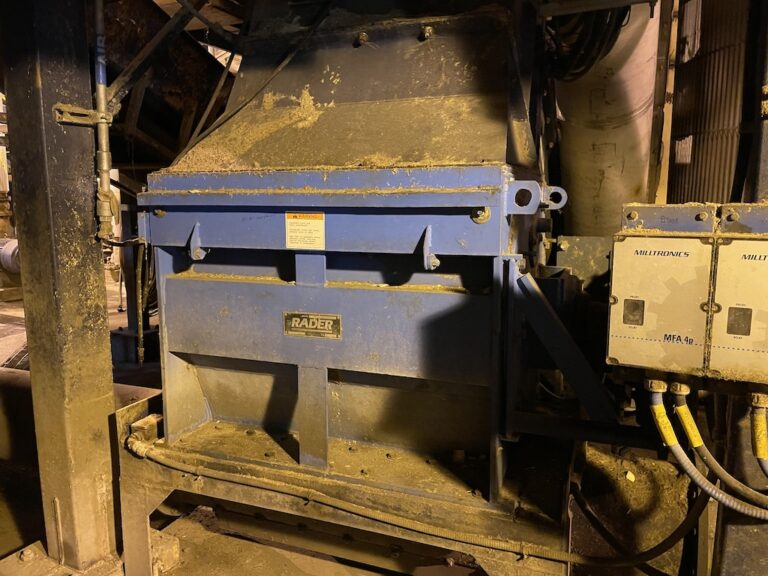

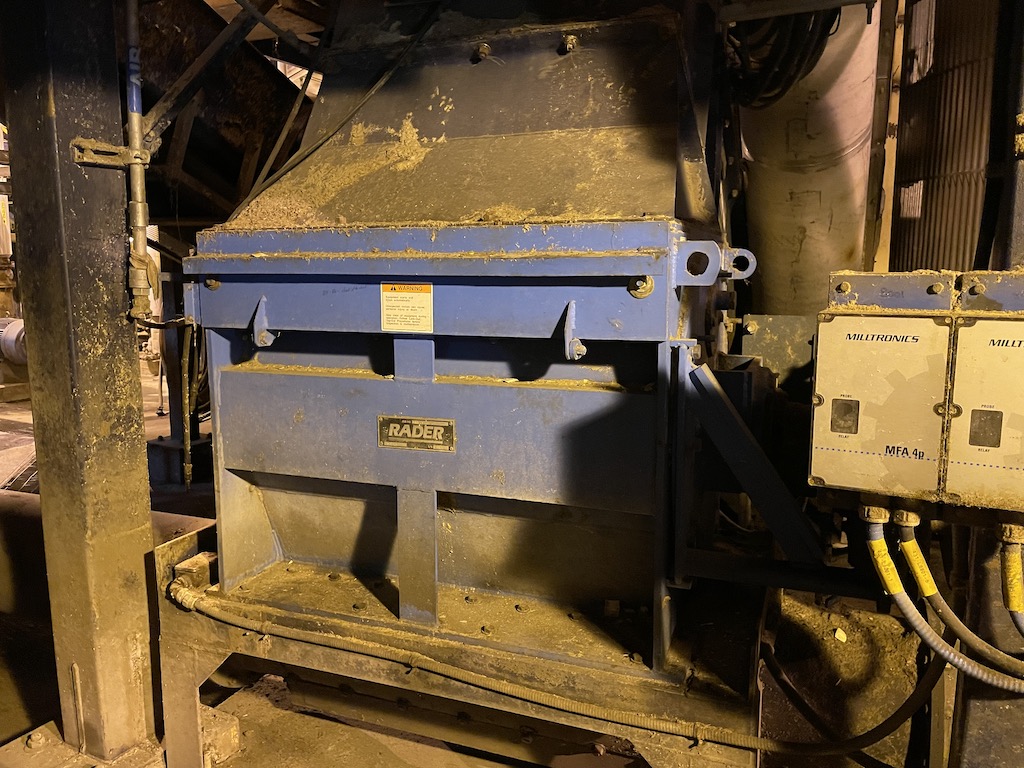

  • Hog fuel scrap system including 42″ X 40′ steel reject incline belt conveyor with Eriez magnet, Rader 36″ X 48″ wood hog with Siemens 300 HP 4,000V  1785 RPM drive motor, assorted outfeed and connecting conveyors [Lot 71]
  • Reclaim screening system with (2) Acrowood Spiral 8′ X 12′ diamond roll screens, Rader 8′ diameter chip cyclone [Lot 72]

Chip Handling & Storage

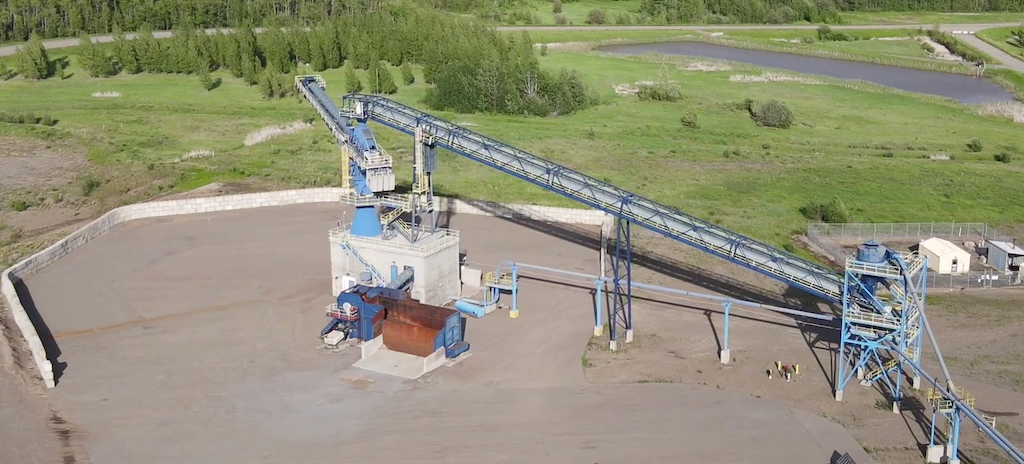

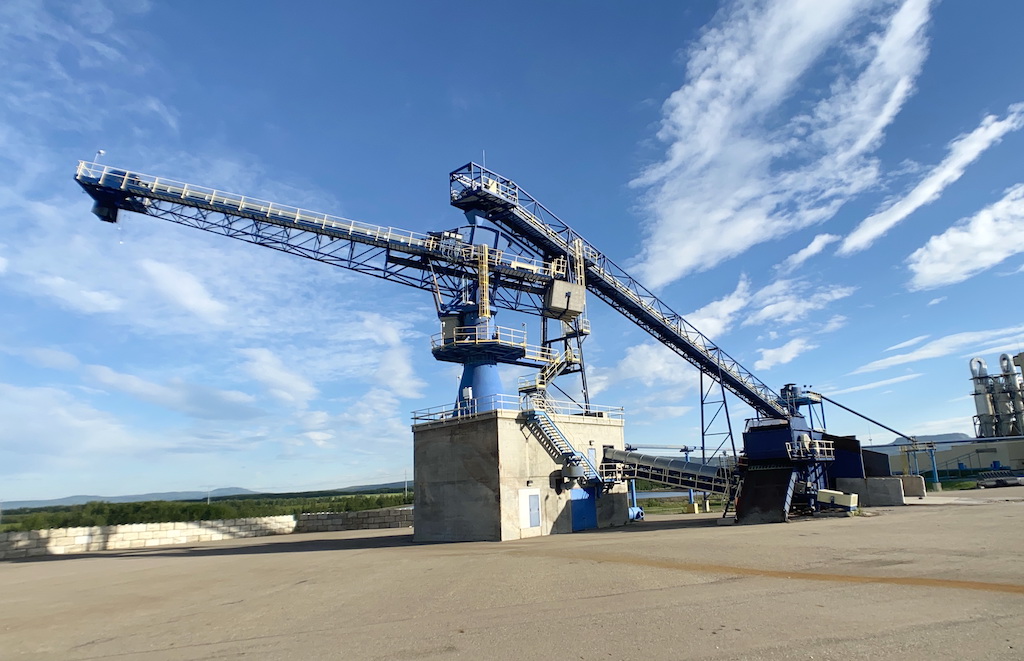

  • RADER chip reclaim and radial stacking system with  in and outbound pneumatic transport systems consisting of (2) Holmes reverse air blowers with 500 HP Siemens Type RAZS 500 HP 4,000V  1180 RPM drive motors, (2) Rader 30 X 45 ESW chip feeders, 600 linear ft. 16″ diameter twin steel transfer tubes on structural steel pipe bridge, 42′ tall intermediate structural steel tower with Rader 8′ diameter buffering cyclone, 42″ X 234′ incline structural steel lattice frame belt conveyor with gear reduced drive, 90′ (L)  X 42″ structural steel lattice frame stacking conveyor on structural steel tower, 270⁰ rotation with hydraulic drives, return system including steel receiving bin with hydraulic chain drag drive, 42″ X 52′ structural steel lattice frame transport conveyor, Acro wood sizing screen, all PLC controls and related equipment [Lot 74]
  • Approx. 300 unit modular cement barrier retaining wall [Lot 75 – 78]

Interested parties please call Joshua Sugar at 416-847-7336 or sugar@workingmancapital.com
