Heavy Duty Large Capacity Structural Fabrication Facility

Heavy Duty Large Capacity Structural Fabrication Facility

Surplus to the ongoing operations of TIW Steel Platework Inc.

Plasma Cutting

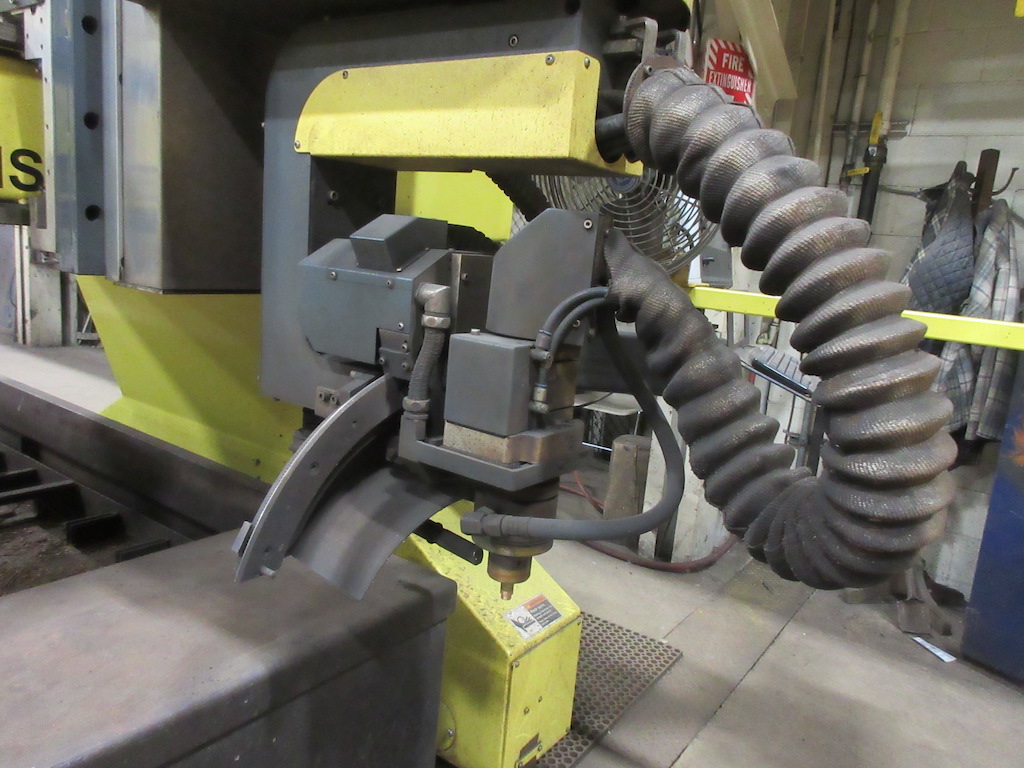

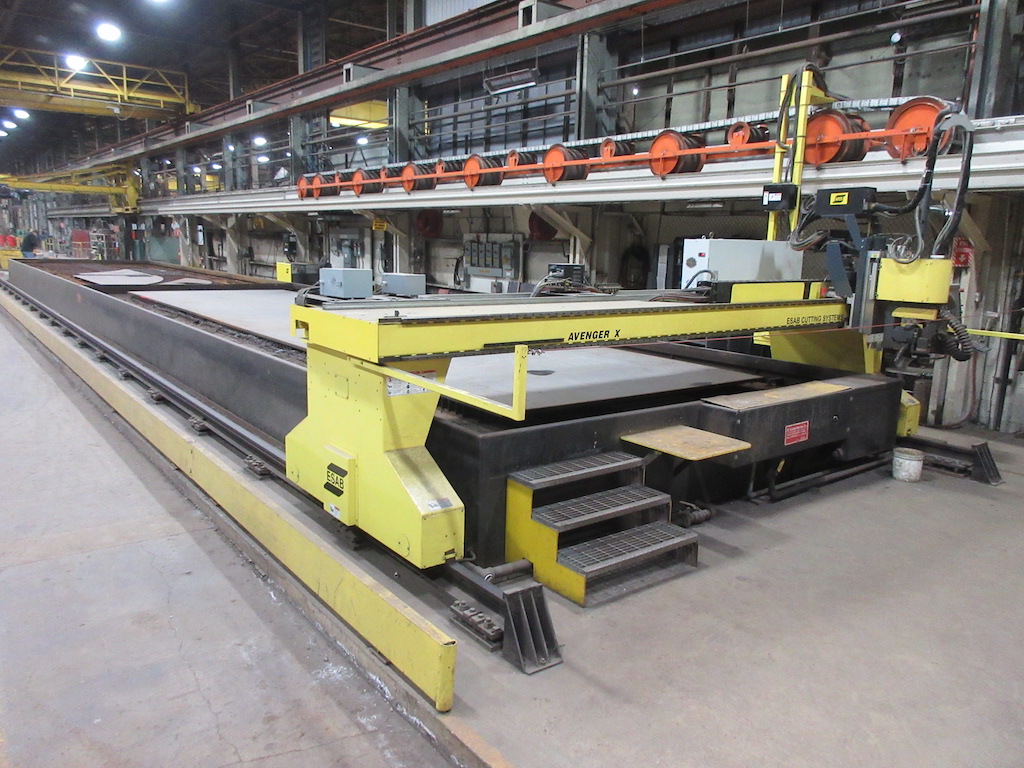

2014 ESAB Avenger X 5000 Heavy Duty Large Gantry Plasma Cutting Machines, 14’x75′ table, single head, Vision T5 CNC system, heavy duty automatic rotary plasma bevel system, plasma air curtain system, video alignment camera, sn’s 0560955532 (bay c), Esab precision plasmarc 601 power, sn PH-K44600178, PH-K4480001, CC11 coolant circulators

Please note, due to ongoing production requirements, the ESAB Avenger from Bay D has been removed from the auction, the same machine (video below) with 75′ table in Bay C remains in the auction. Thank you for your understanding.

By C Video

Aerial                           https://youtu.be/pFy9g-9zRgs

Alignment Camera      https://youtu.be/2aolDhmy5QE

Ground Level              https://youtu.be/Bq4JXIk-ibw

Fabrication

*Please note, due to ongoing production requirements, the 2012 FACCIN rolls have been removed from the auction. Thank you for your understanding. 2012 FACCIN 3162 HAV 3 roll plate rolls, 10’ max plate length, 693 Ton bending, 24.41” top roll dia, 21.26” lower roll dia, 6.5 – 13 FPM, variable geometry, hydraulic adjustment, siemens control, 100 HP, sn 12034179-4181 https://youtu.be/7SVZaVxQn9Y

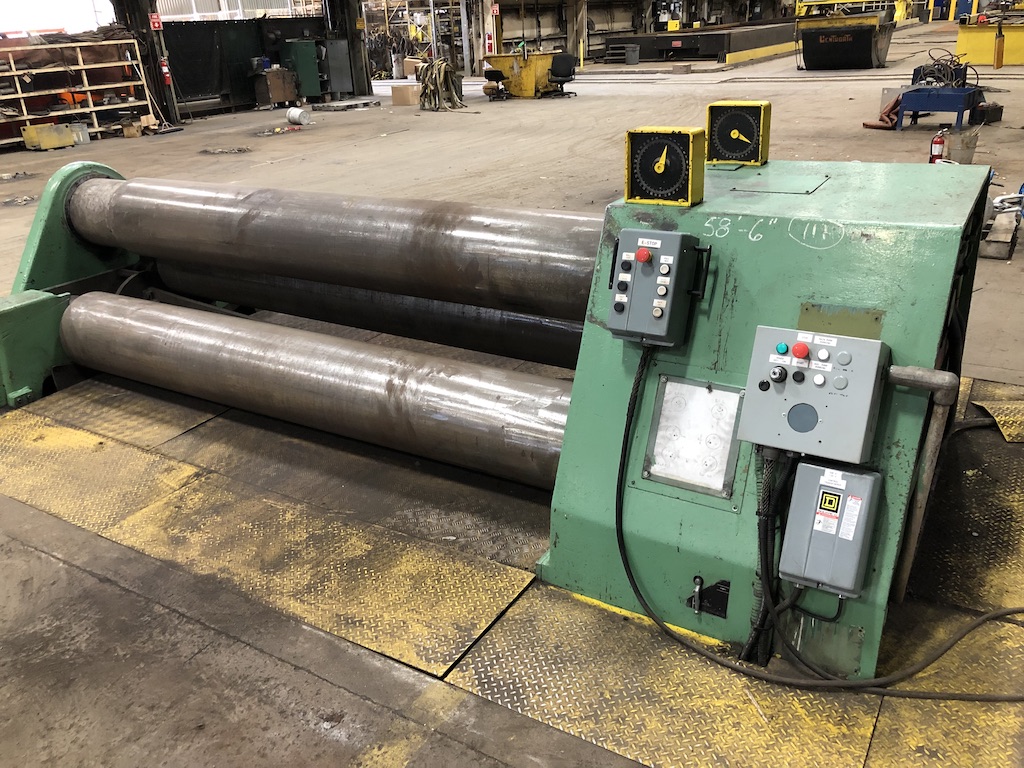

HEAVY DUTY 10′ Plate rolls, approx. 5/8″, 0-15 mm capacity, approx 14″ dia top roll, 15″ dia bottom rolls

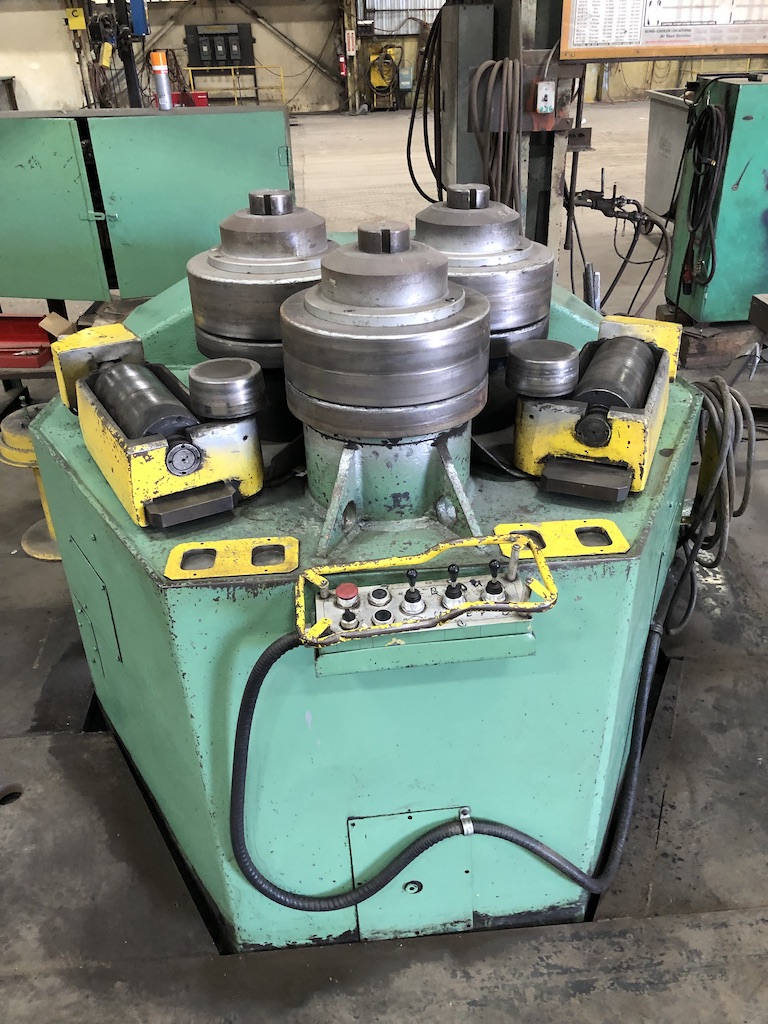

PULLMAX Heavy Duty hydraulic angle rolls, model Z41, 5” x 5” x ½” capacity, 4” pipe, spare dies https://youtu.be/B8XL1eoMPAw

SCOTTISH 550 Ton x 16’ Press Brake, type 550 16H14, 12″ stroke, hydraulic, sn 3271 *Auctioneer’s note: not in operation

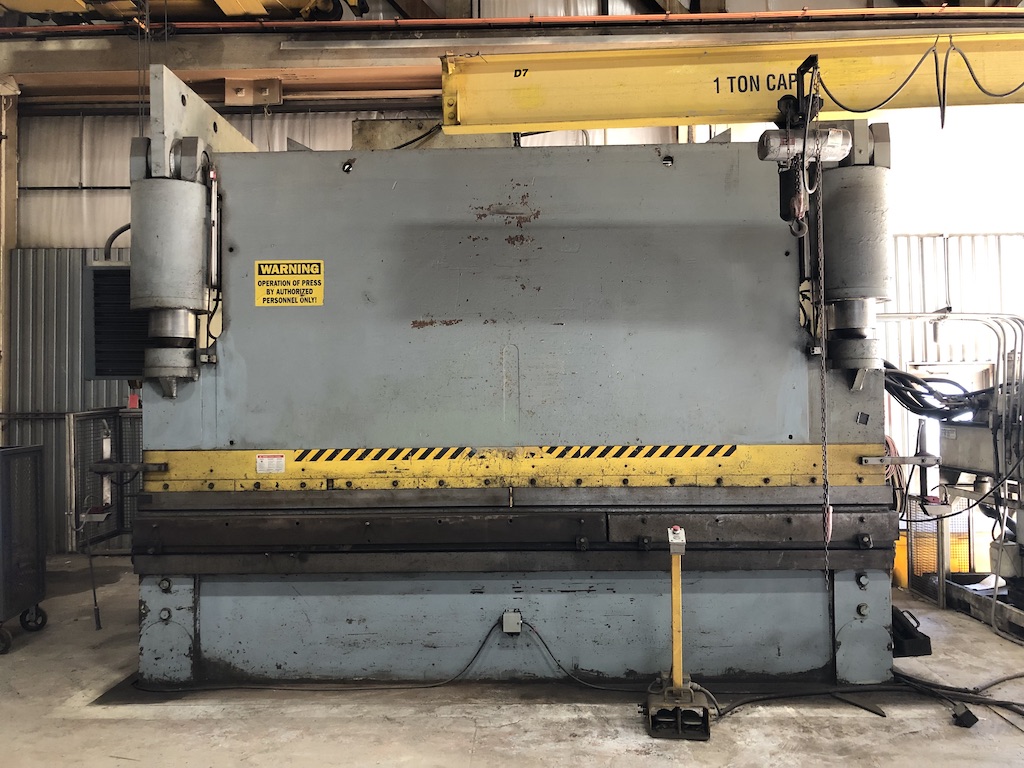

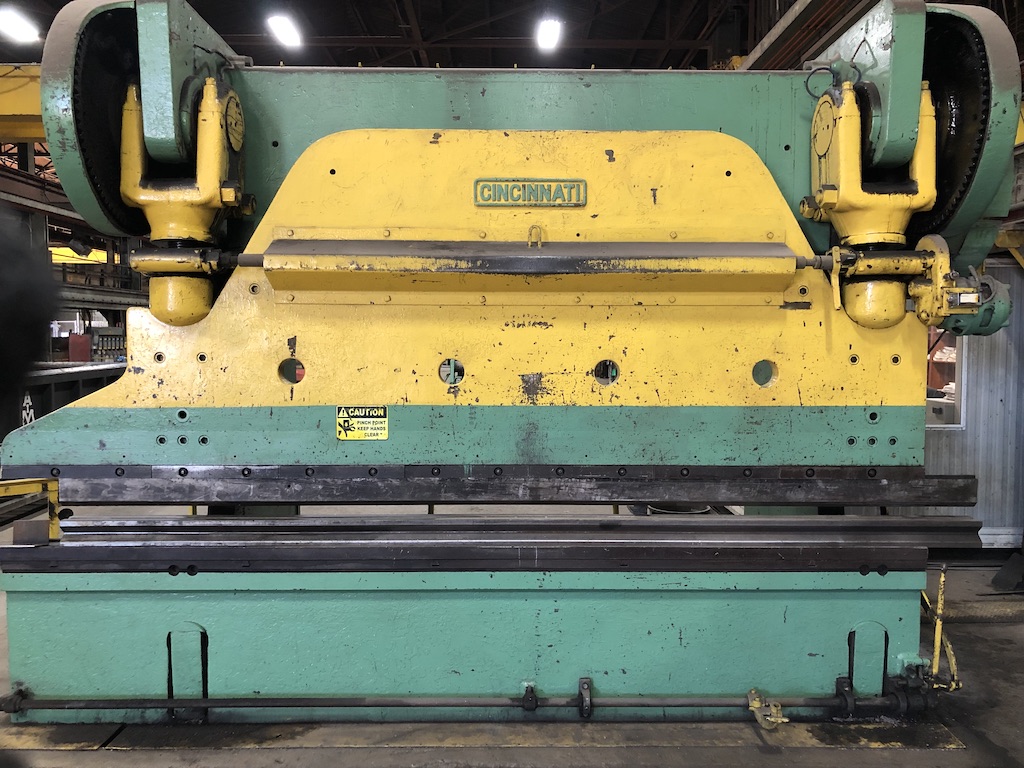

CINCINNATI approx. 250 Ton x 14’8″ press brake, 4 way die, asst. tooling, sn 011844 1910 https://youtu.be/-EY4s05cdRE

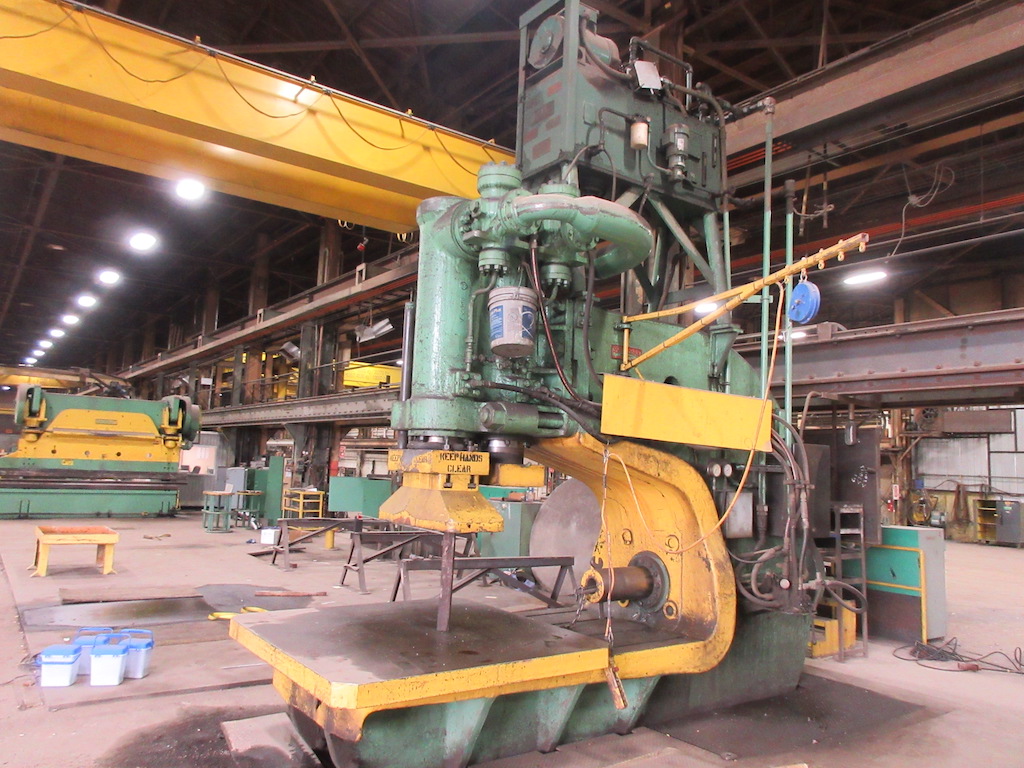

BALDWIN Southwark 200 Ton sectional flanging press https://youtu.be/fl2YG7f54eM

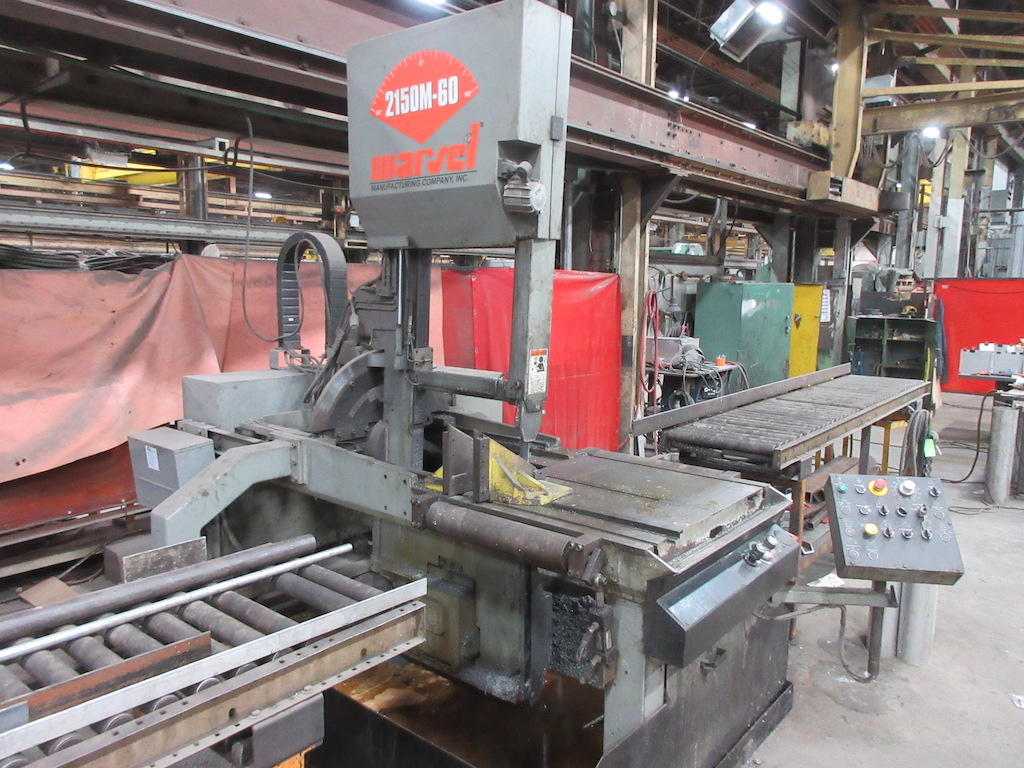

MARVEL vertical bandsaw, model F 2150M-60, 60 deg. mitering, sn 30173M

MARVEL universal vertical bandsaw, series 8, model MK1, 18” x 20” capacity, sn 82215W

Machining

NOMURA horizontal boring mill type B-100WR, 4″ spindle dia., travels: X 63”, Y 60”, Z 26”, w 50” (saddle), 50 taper, 55” x 63” rotary table, spindle speeds 12-1200 rpm, feed rate .25-100 IPM, acu-rite dro, sn 3671 https://youtu.be/n3w1XbJpVYI

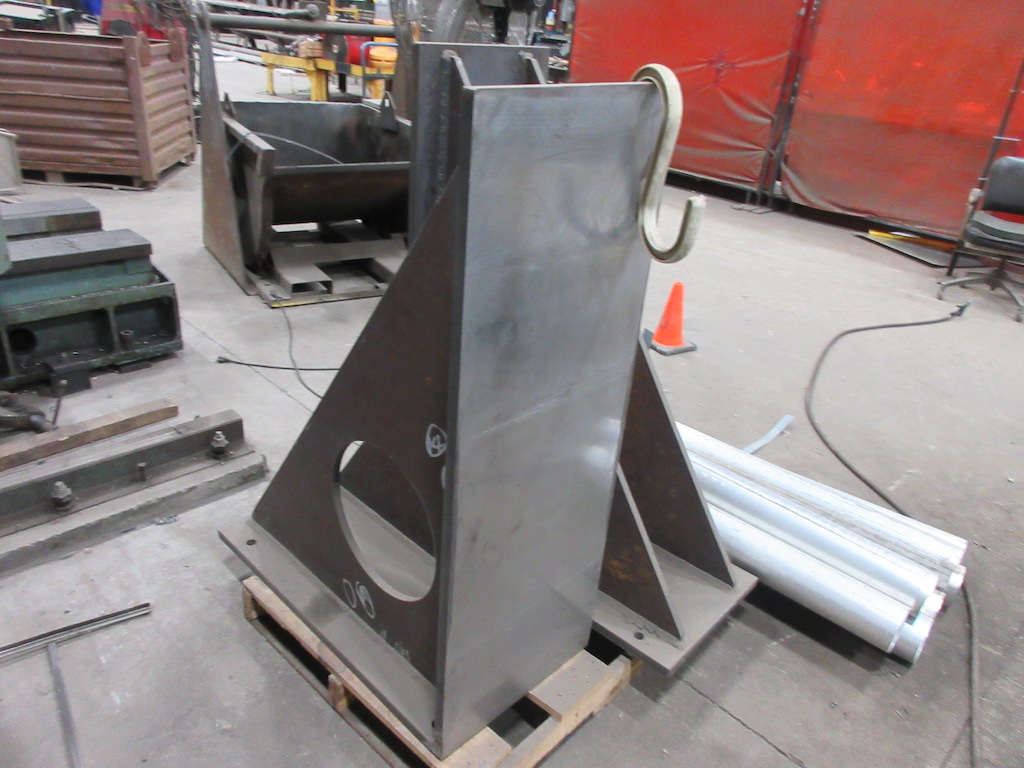

18” x 49″ angle plates

GIDDINGS & LEWIS vertical lathe, type 54, dual arm, 52″ table, sn 18560 / 7535 https://youtu.be/SsAjBaMI1gY

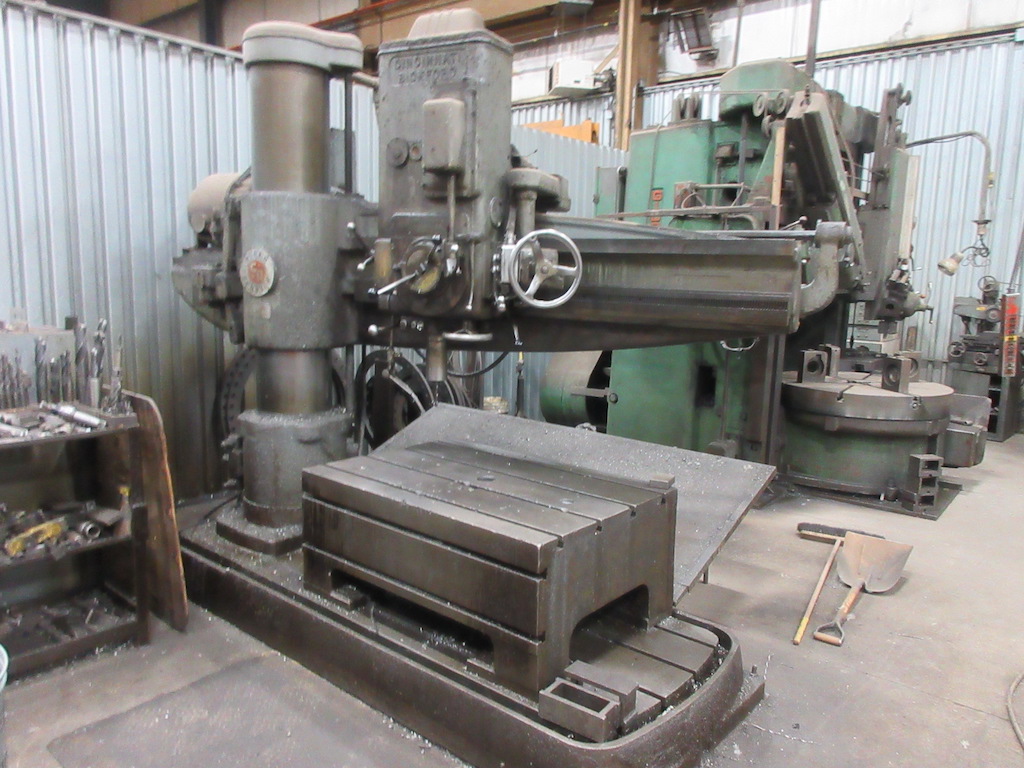

CINCINNATI BICKFORD HD 6’ radial drill, box table, sn 4E1074

PHOENIX mill, model fm200, 112″ x 55″, 5 hp, variable speed, newall 2 axis dro, sn 851124, includes 6″ vise https://youtu.be/zdq5OJWLRu0

2008 POWERTURN 20″ X 80″ lathe, 12″ 3 jaw chuck, 3-1/4″ bore, quick change tool post, tailstock, Fagor 2 axis DRO, sn 810159, includes 2 steady rests, spare chucks https://youtu.be/LcektVVCWm0

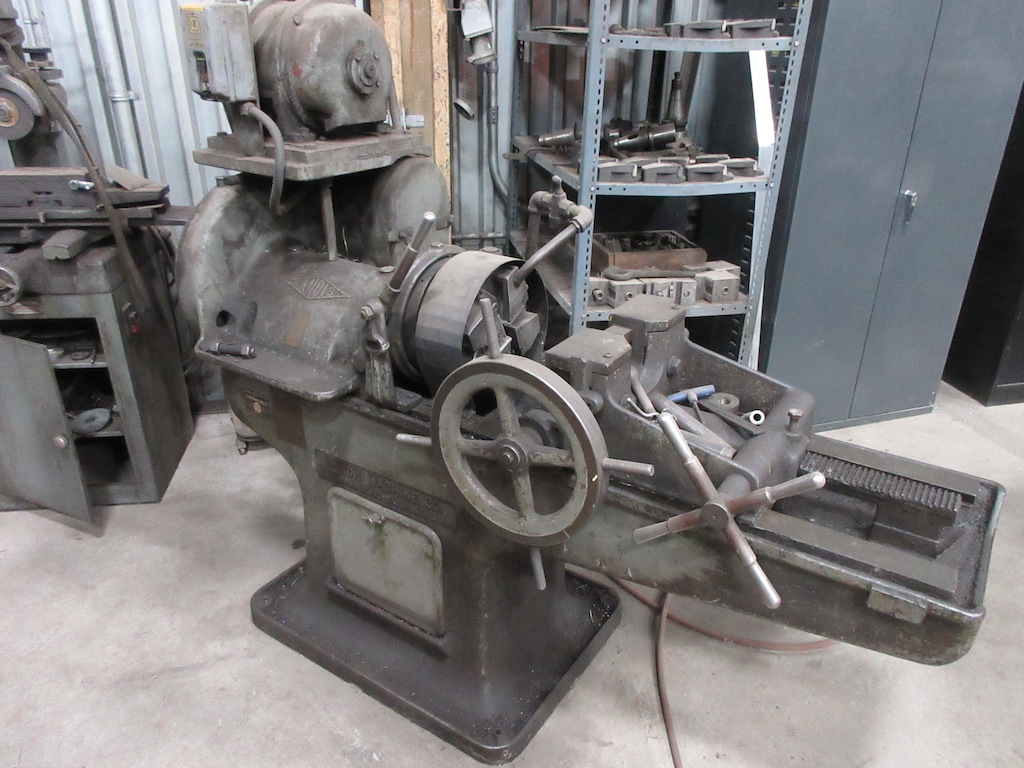

LANDIS bolt threader, 11″ chuck, assorted chucks

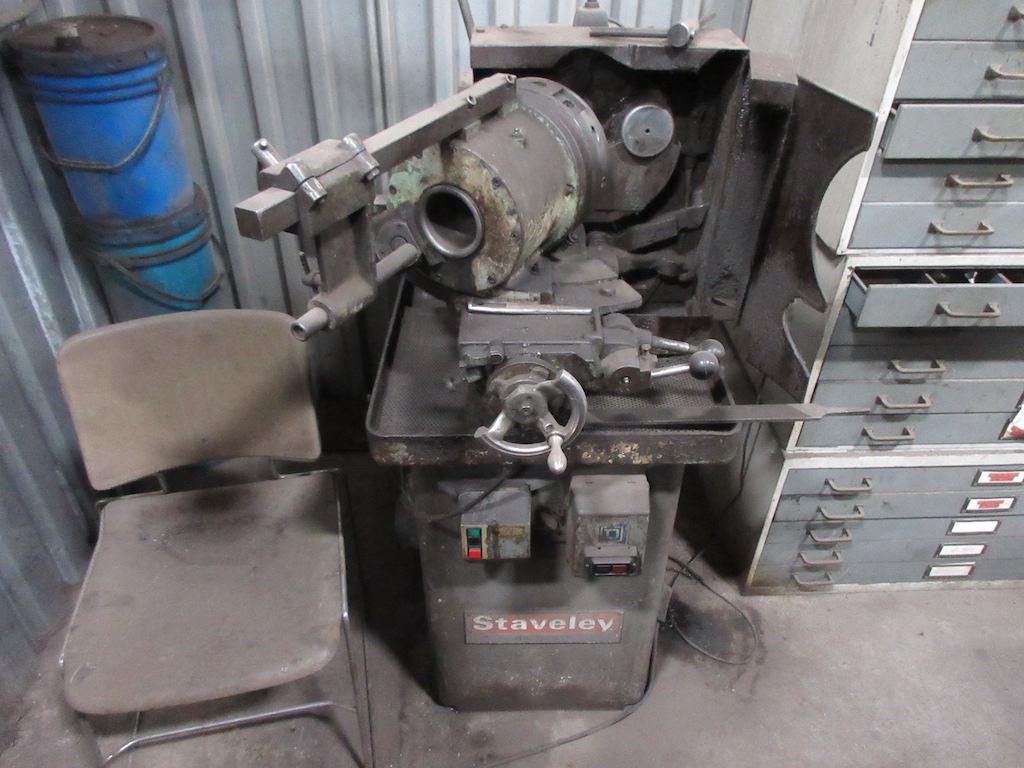

ARCHDALE Staveley Drill sharpener sn 31239

ROCKWELL surface grinder, 5” x 10”

Flange Facer

CLIMAX FF3000 portable flange facer, facing diameter capacity range from 1.5” – 12”, ID mounting diameter 1.5” – 6.75”

Assorted flanges and tank parts

Weld Positioners & Manipulators

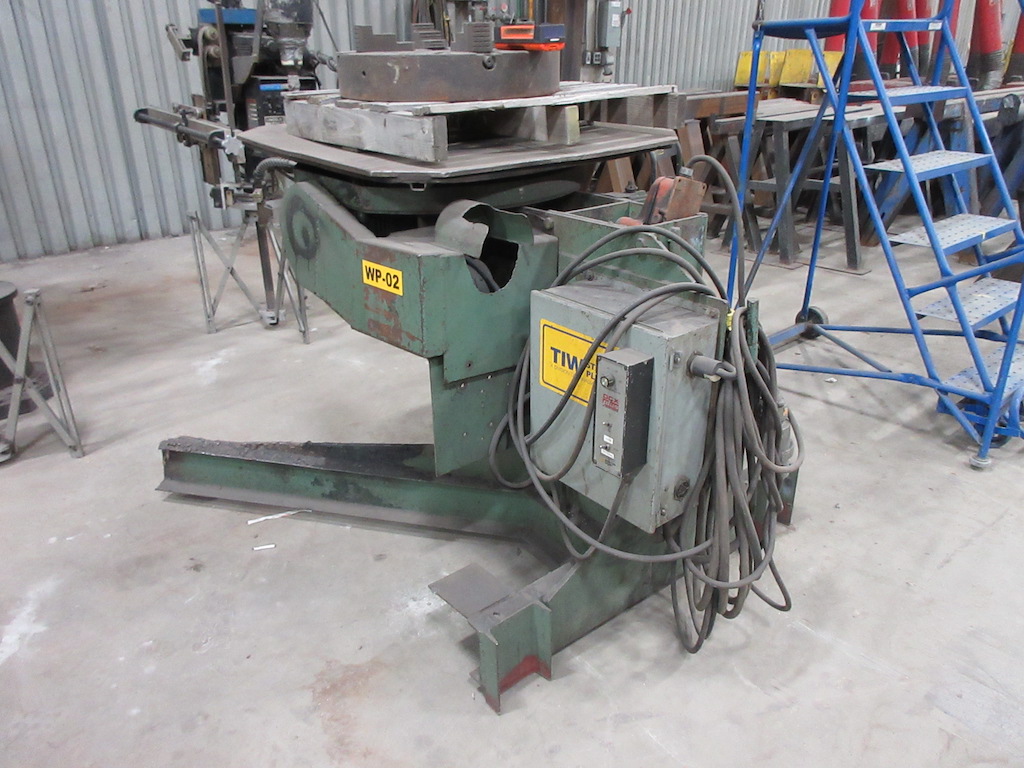

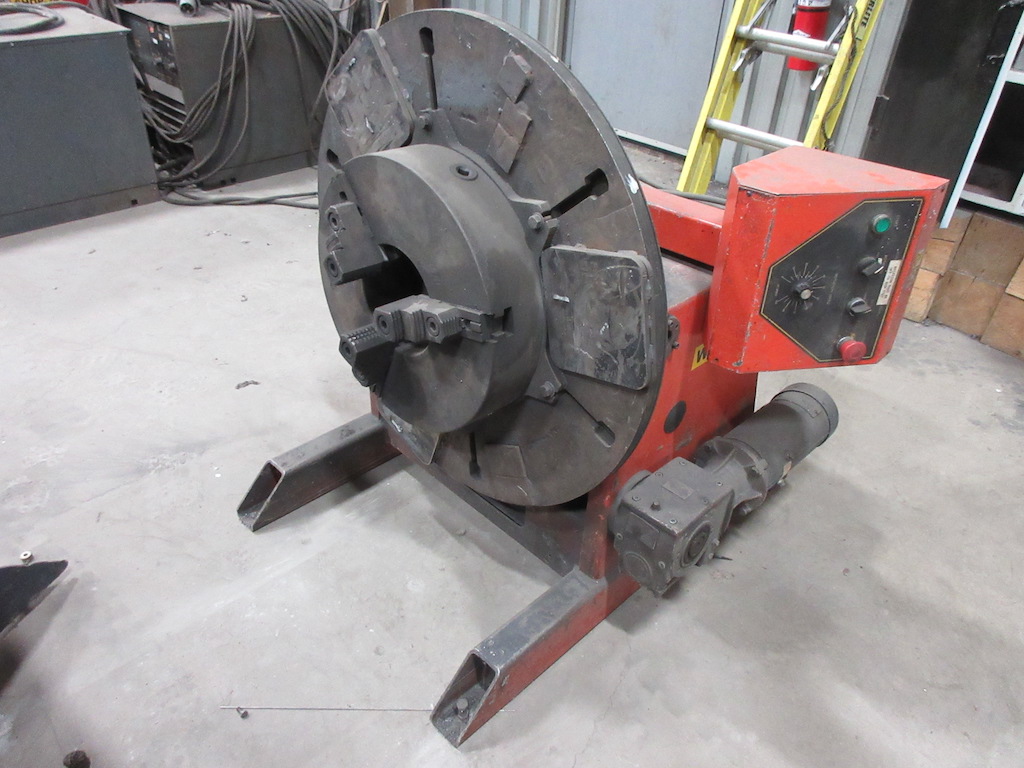

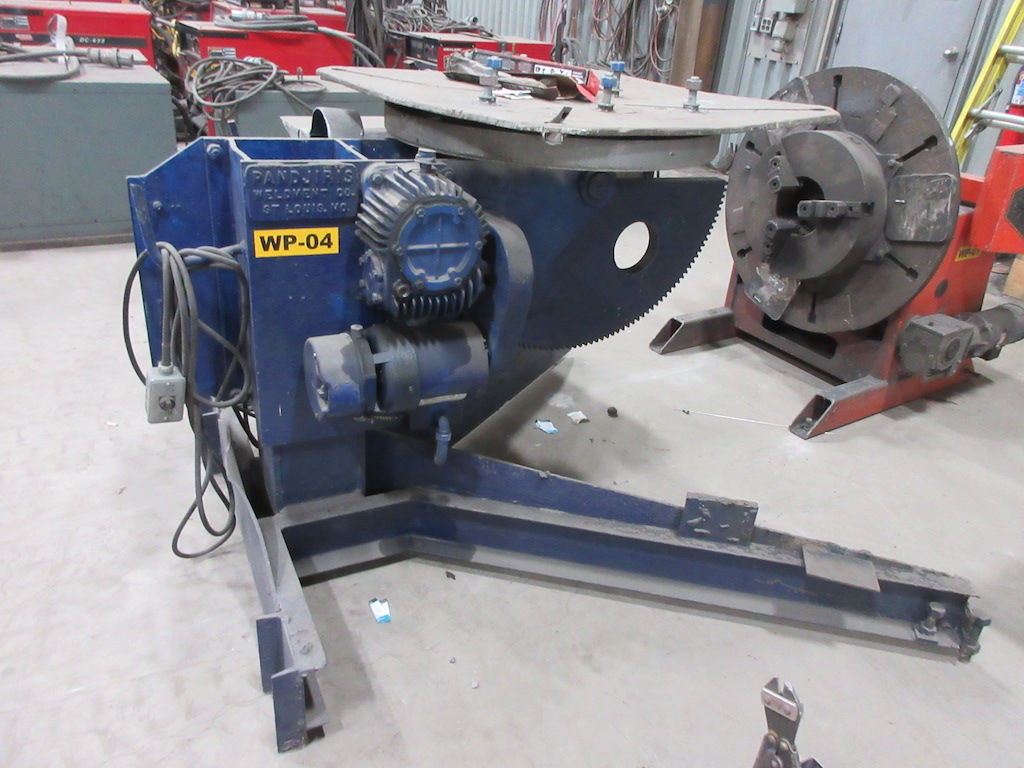

PANDJRIS model 8×8 weld positioner, sn 8123242 w/ Lincoln Electric Idealarc DC600 power source

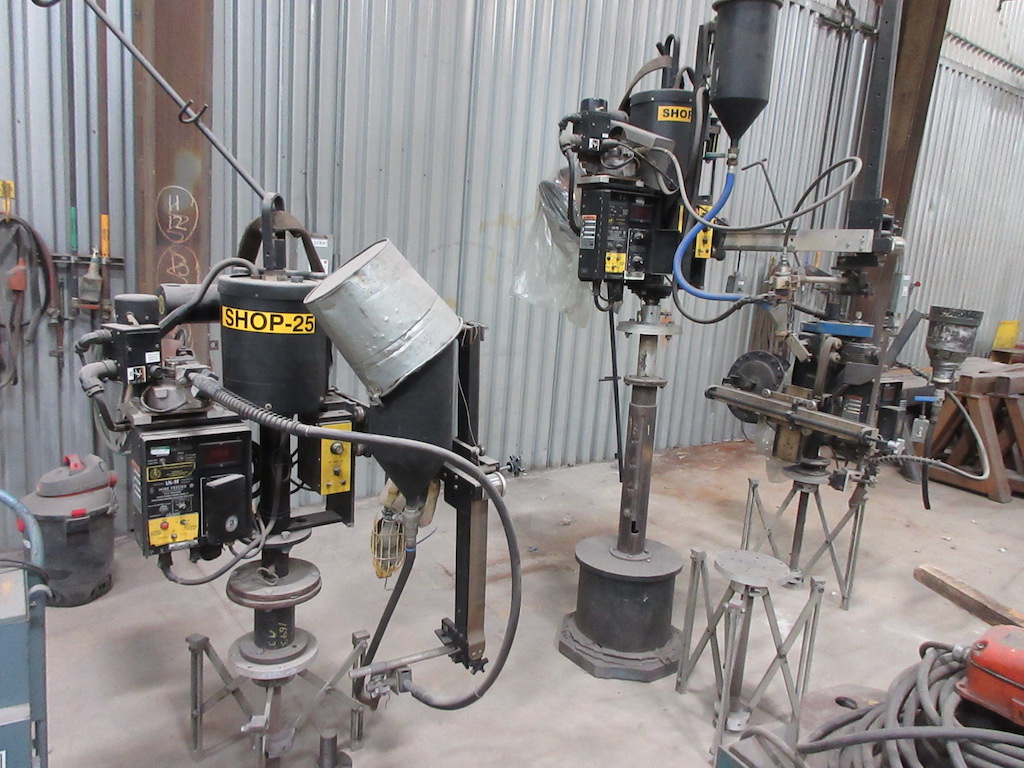

(3) LINCOLN ELECTRIC LN-9F circle welder

(3) LINCOLN ELECTRIC LT-7 Tractor weld units

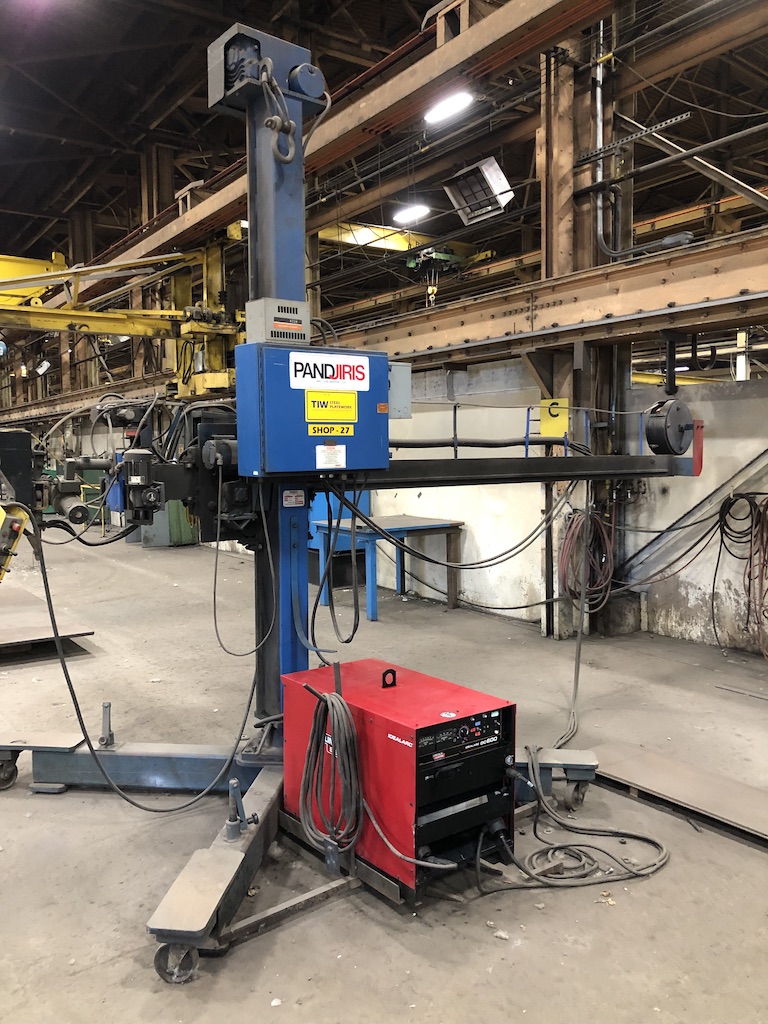

PANDJRIS weld manipulator model 30-6 MVRMT sn 2518212

PANDJRIS weld manipulator 35” x 35” table

PANDJRIS weld manipulator model 7.6 MVRHT, sn 25692

36″ dia weld manipulator

100+ Welders

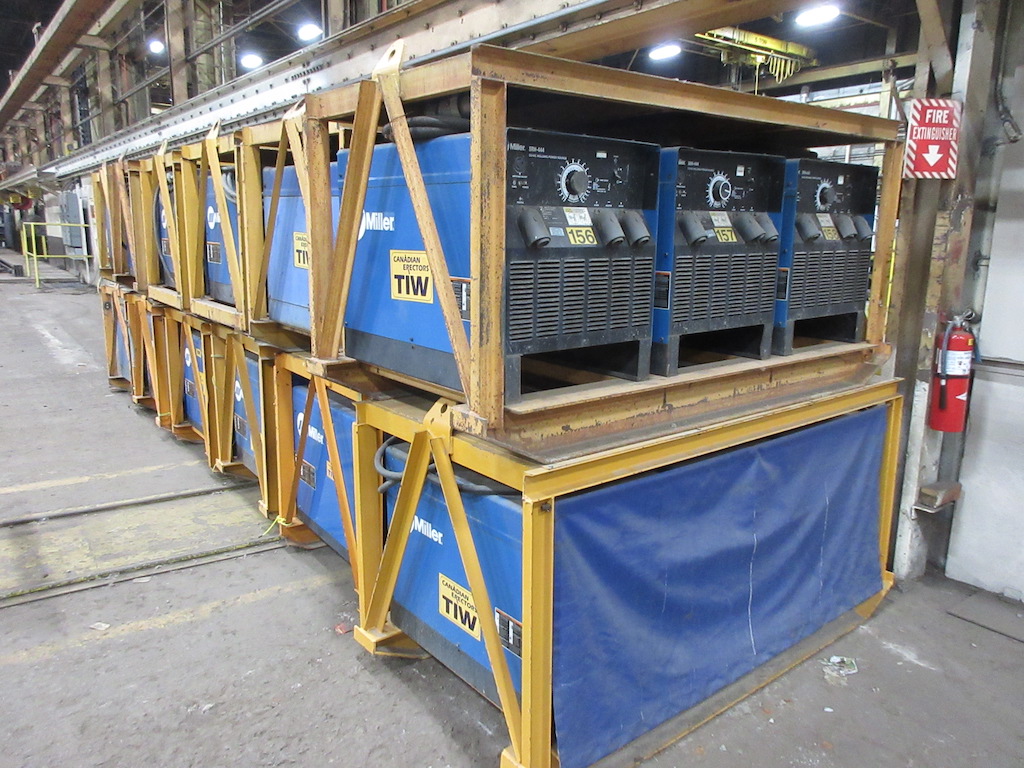

(60) MILLER SRH-444 CC DC weld power sources

(2) MILLER Dimension 652 weld power sources

(11) LINCOLN ELECTRIC DC-655 weld power sources

(2) LINCOLN ELECTRIC DC-600 weld power sources

(9) LINCOLN IDEALARC R3R-400 power sources

(6) LINCOLN ELECTRIC LN-25 suitcase welders

Weld Support

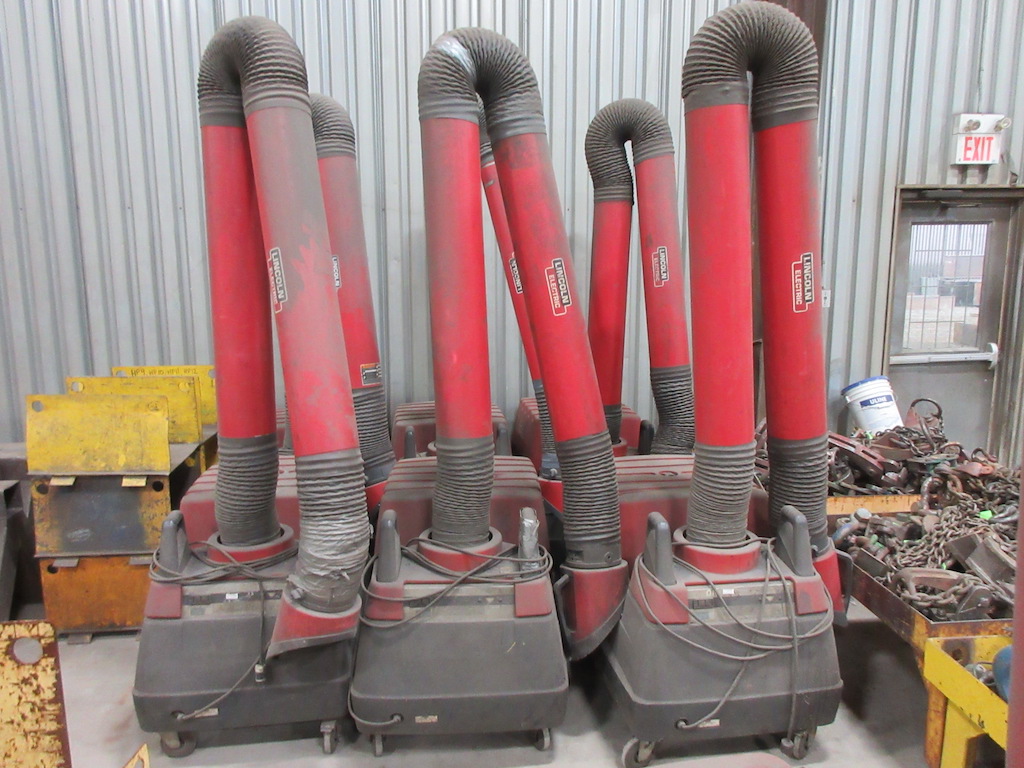

(9) LINCOLN ELECTRIC fume extractor model Mobiflex 200-M

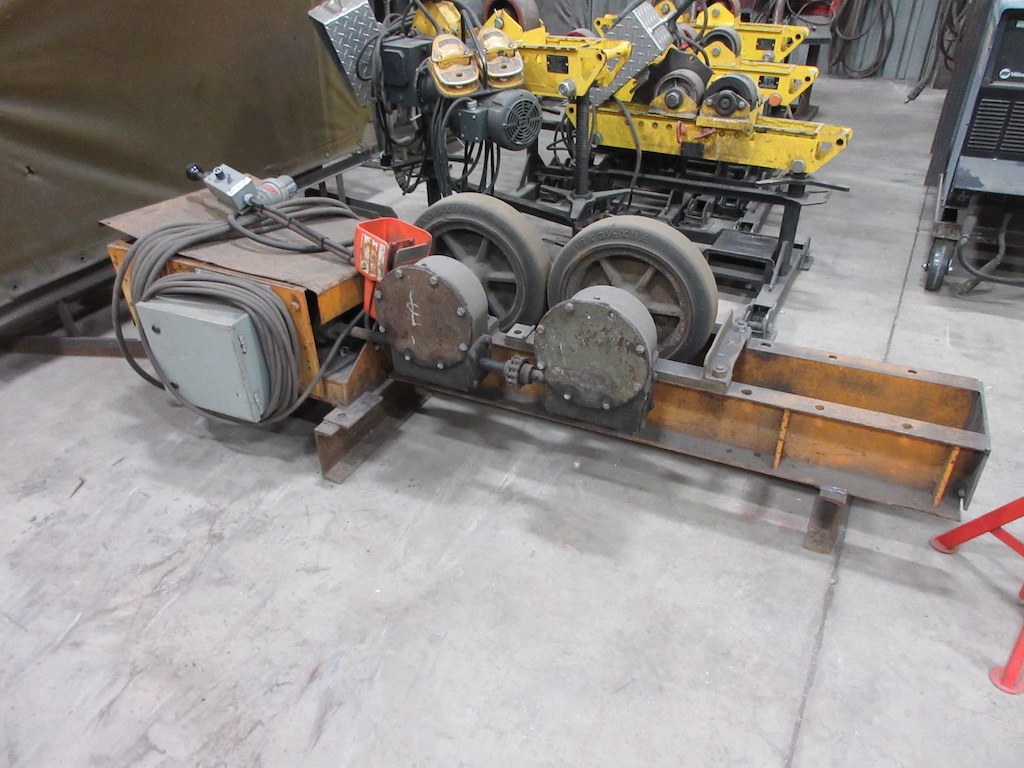

(8) Assorted power tank rollers

Skid of Lincolnweld 5/64”, 2 mm, L-61 weld wire, ED500343, 60 lb net wt

Gullco electrode stabilizing / flux holding oven model GOV-100 FH, sn GOV17252

Assorted weld screens, steel saw horses

Forklifts

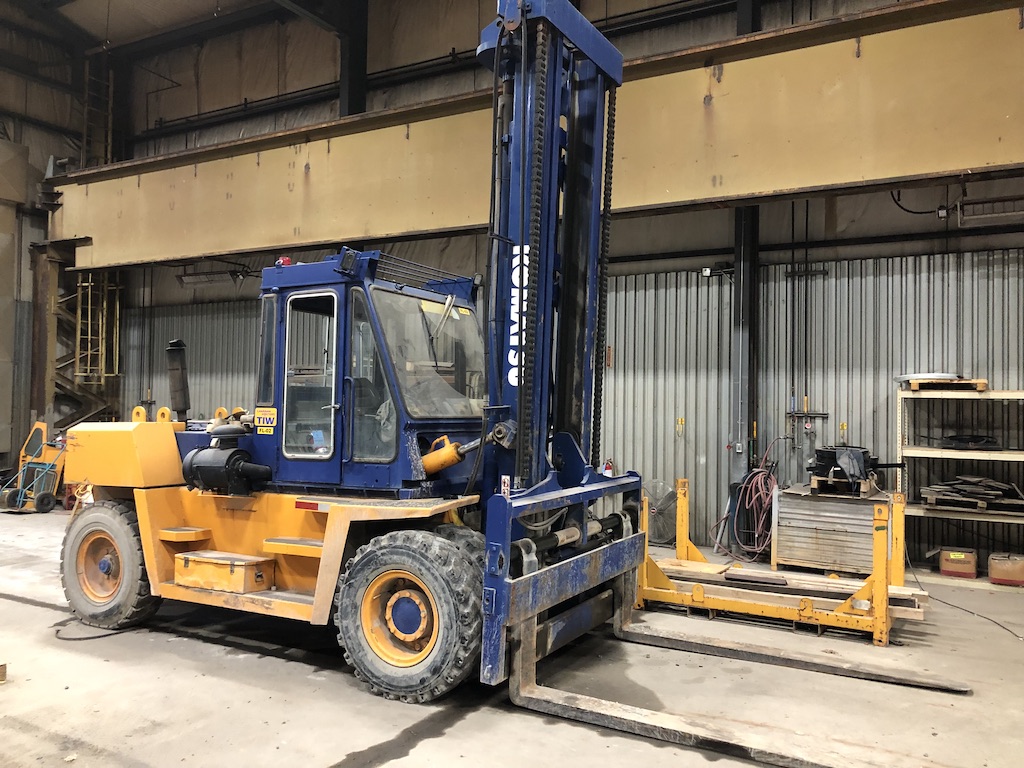

KOMATSU 30,000 lb capacity, model FD135-5, type D, 197” max fork height, 2 stage mast, diesel 96” forks, fork positioner, pneumatic, 8,912 hrs, sn 4016

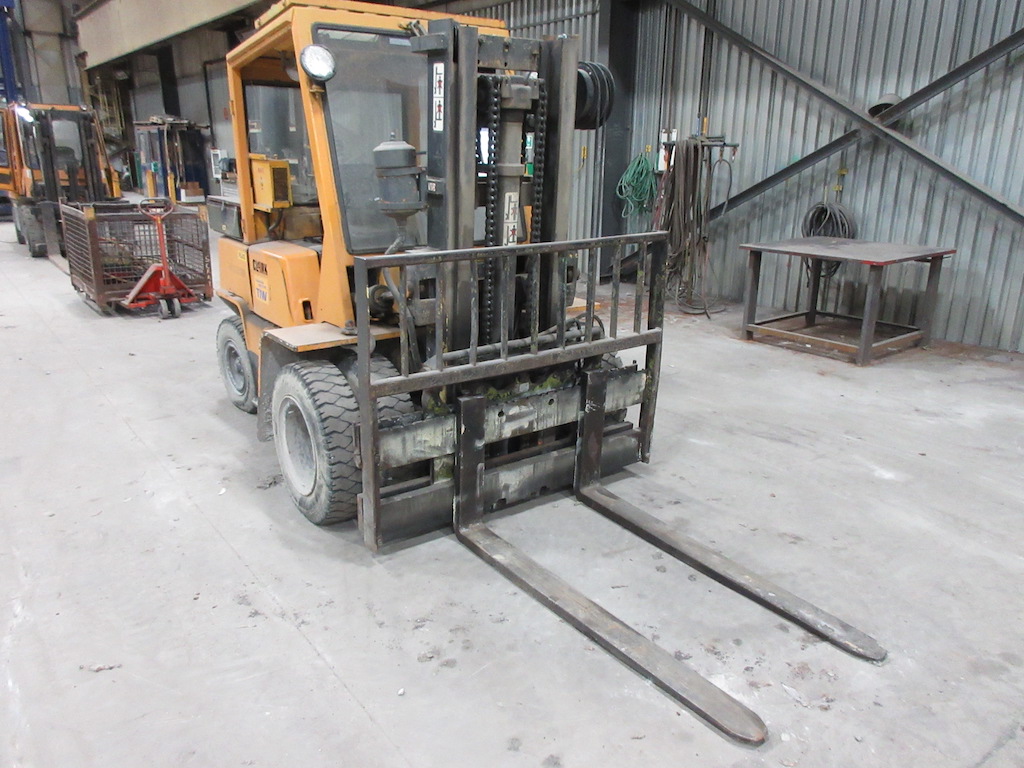

CLARK 7,200 lb capacity, model C500 YS80, 123” lift height, 4,097 hrs, sn Y685821213

Portable Air Compressors

(3) SULLAIR P185, (1) Ingersoll Rand, trailer mounted compressors

(2) SULLAIR skid mounted compressors

Material Handling

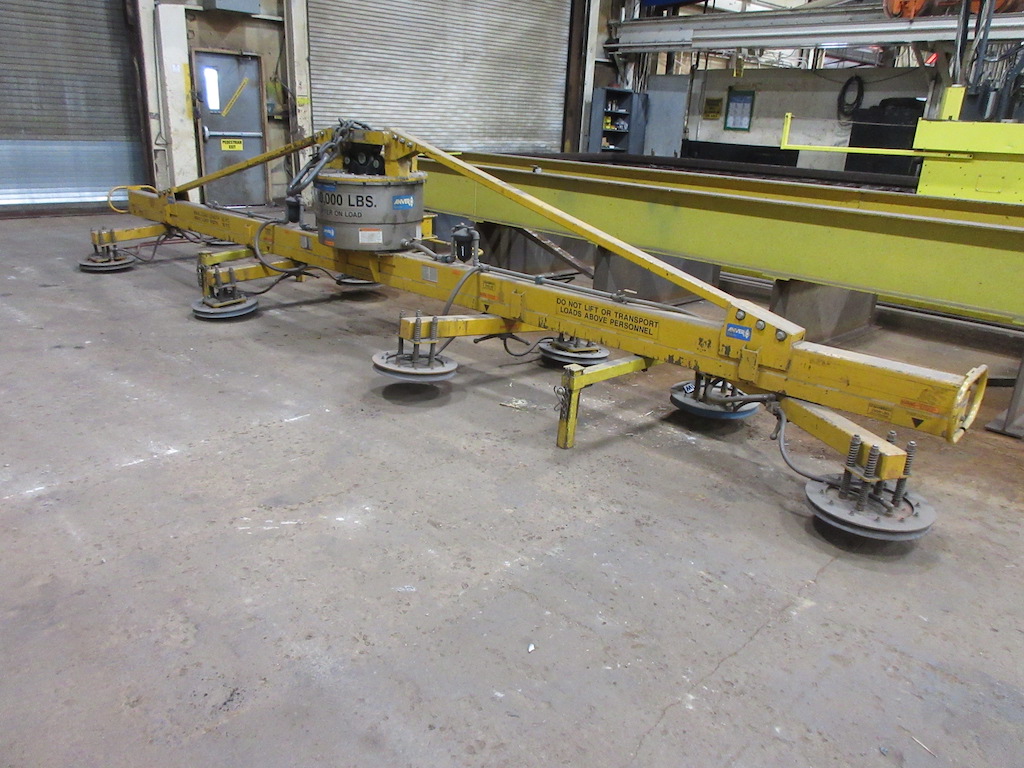

(2) ANVER 10,000 lb cap suction lift, Model M1000M8-290-4/56FX, 24’L expandable to 32’L x 10’W sn’s 602947-7, 106395-1

ANVER 4,200 lb cap suction lift, model L420M3-110, sn S0070013255

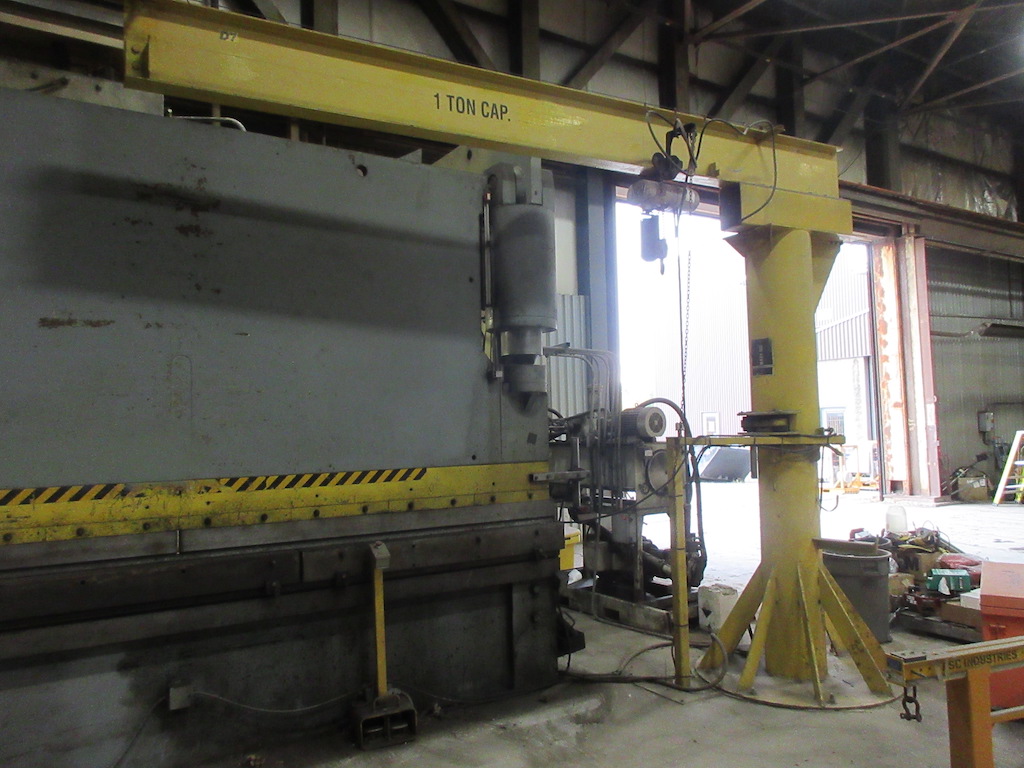

1 Ton jib crane approx. 10’

Heavy duty lifting chains, plate clamps and grabs

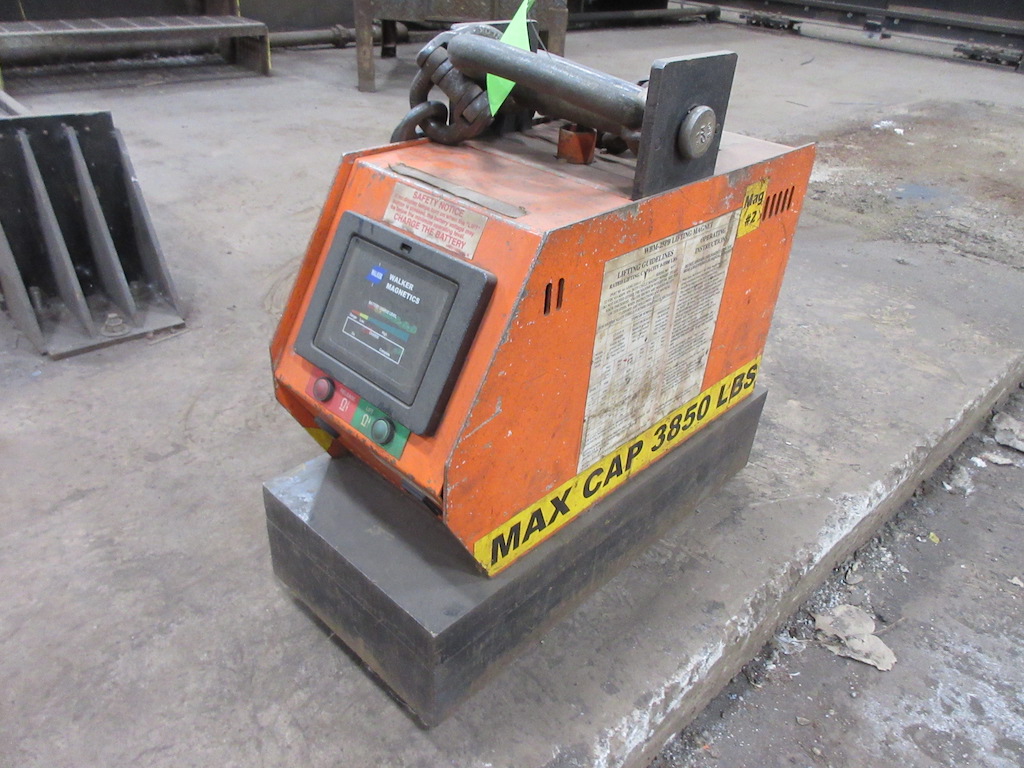

(5) Heavy duty lifting magnets up to 5,500 lb cap

1.25 ton capacity 5’ spreader bar w stand

Raw material

(3) assorted drops of HD steel plate, grills

Rolling Stock

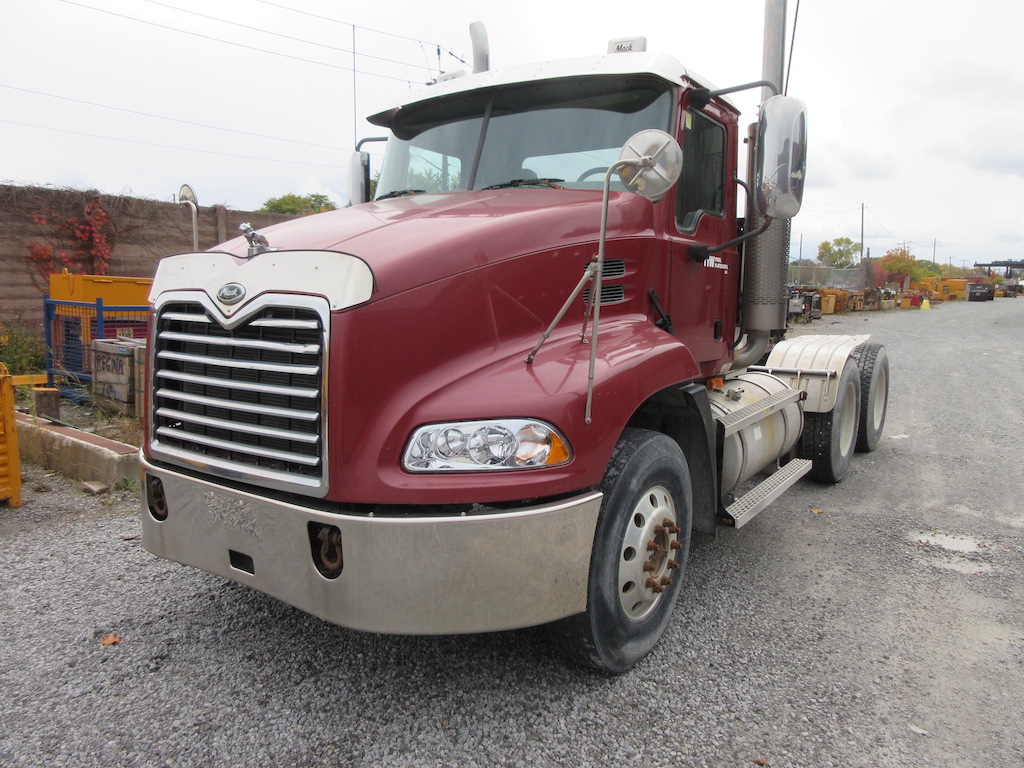

2005 MACK CXN613 yard truck, 696,507 km indicated, manual transmission, vin 1M1AK07Y26N008834 https://youtu.be/SZ9_gUFrhGo

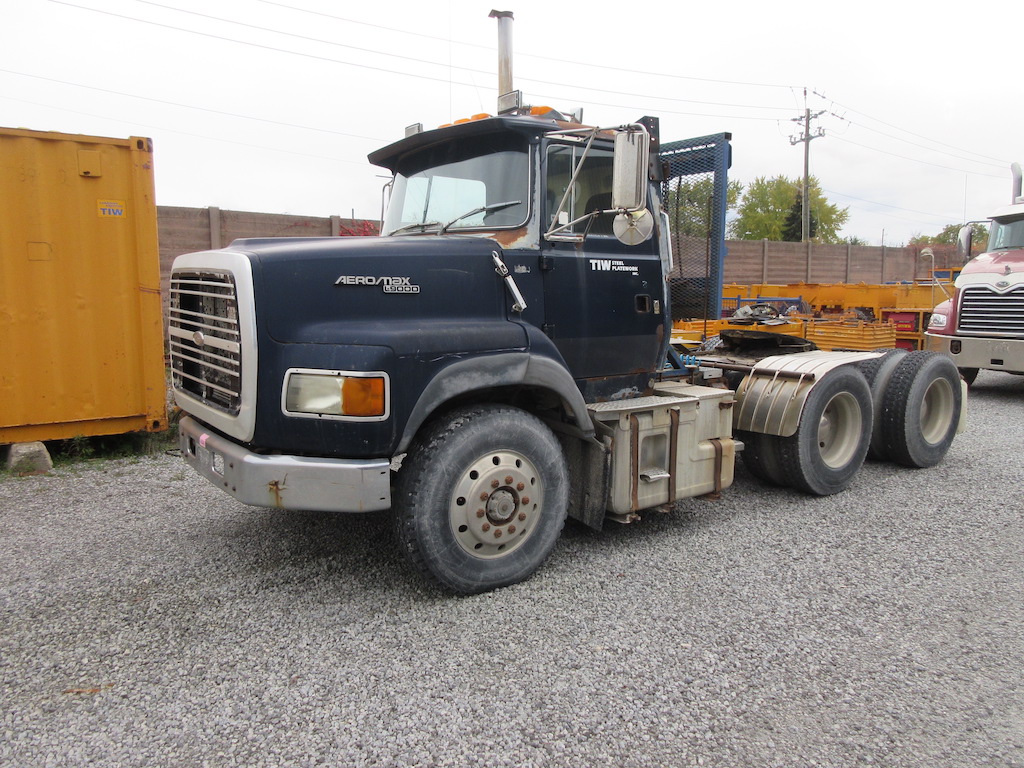

1992 FORD Aero Max L 9000 yard truck, GVWR 52,000 lb, 50,497 km indicated, manual transmission, vin 1FDYY95R6NVA34747 (auctioneer’s note: damage over passenger wheel housing) https://youtu.be/jMP8esN_Ab8

Misc

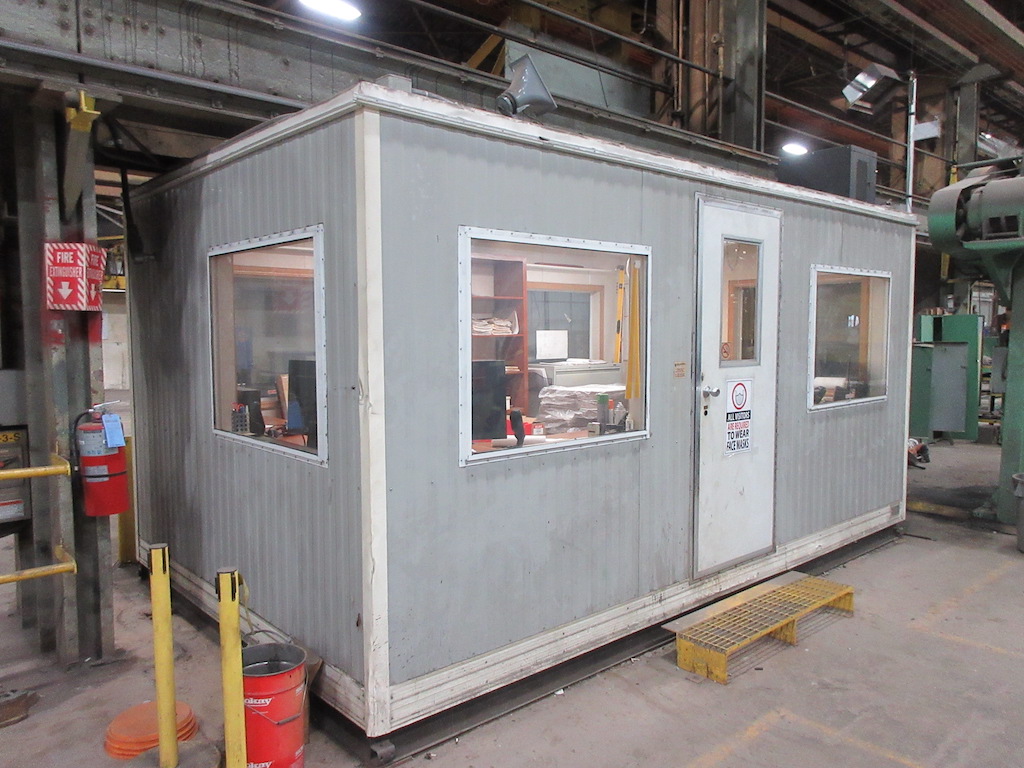

2011 DESIGN SPACE Trailers 10’ x 16’ portable office, sn 1253

QUINCY QGV75, 75 HP compressor, rotary screw, variable speed

Ford Smith dual pedestal grinder

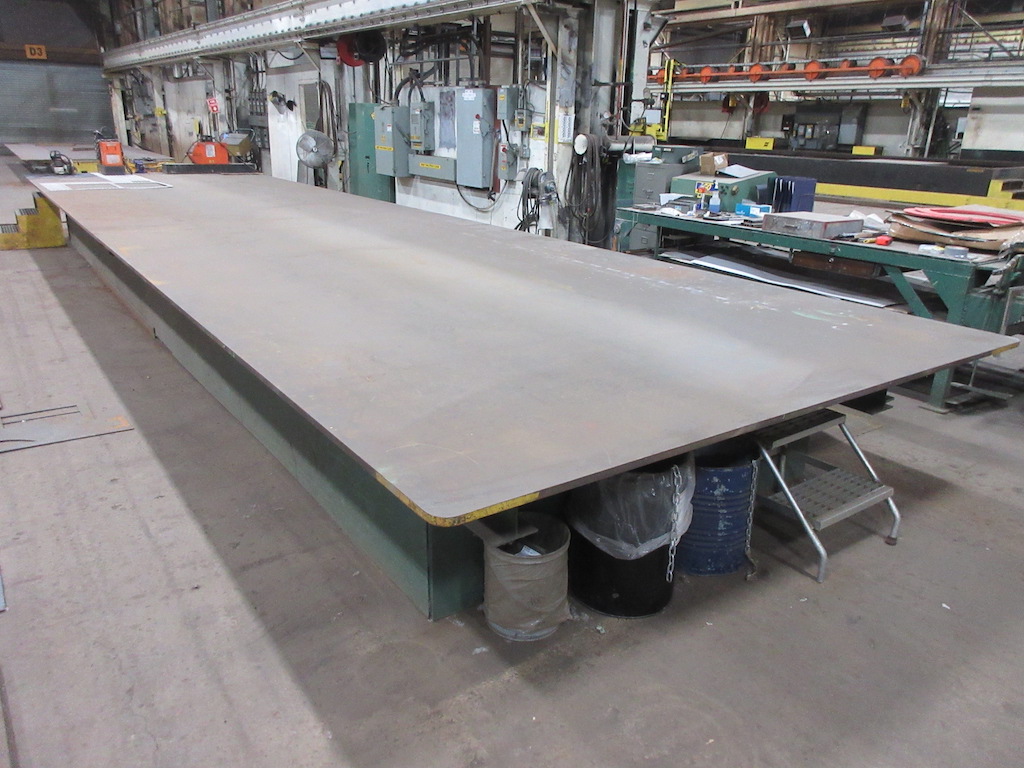

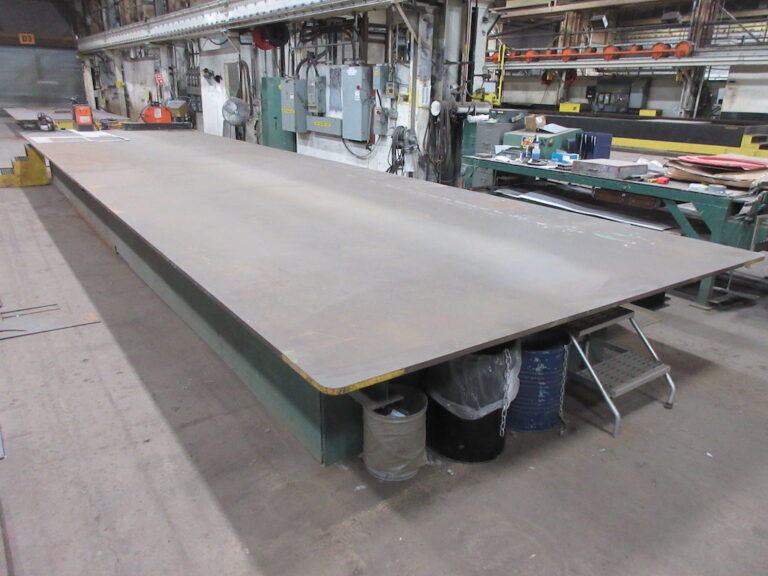

HD steel table 114″ x 420″ x 1”

(8+) HD steel welding tables

5’x10′ steel slotted cutting table

5’x50′ I beam support stand

18 HD shop fans

Safety equipment

Steel bins, buckets, cages, cabinets etc.

Urgent Removal Deadline: All Items by Friday December 17th

Date

Inspection

Location

23 Smith Street St. Catharines, Ontario. L2P3J7

Bid via

Live Webcast Via Bidspotter.com
