![Quality Fabrication & Surplus to US Precision Manufacturing](https://workingmancapital.com/wp-content/uploads/2023/12/QFI-Logo-300x111.png)
CNC Machining, Turret Punches, Laser Cutting, Stamping, Furnaces & Finishing
Online Only Timed Auction Wednesday February 21, 2024, 10am PT
Inspection Tuesday February 20, 9 am – 4 pm
2 Locations, 1 Auction!
Quality Fabrication – 9631 Irondale Avenue, Chatsworth, California, 91311
US Precision Manufacturing – 4020 Garner Road, Riverside, California, 92501
All items located at Quality Fabrication unless noted [USP] for items at US Precision.
LASER CUTTING

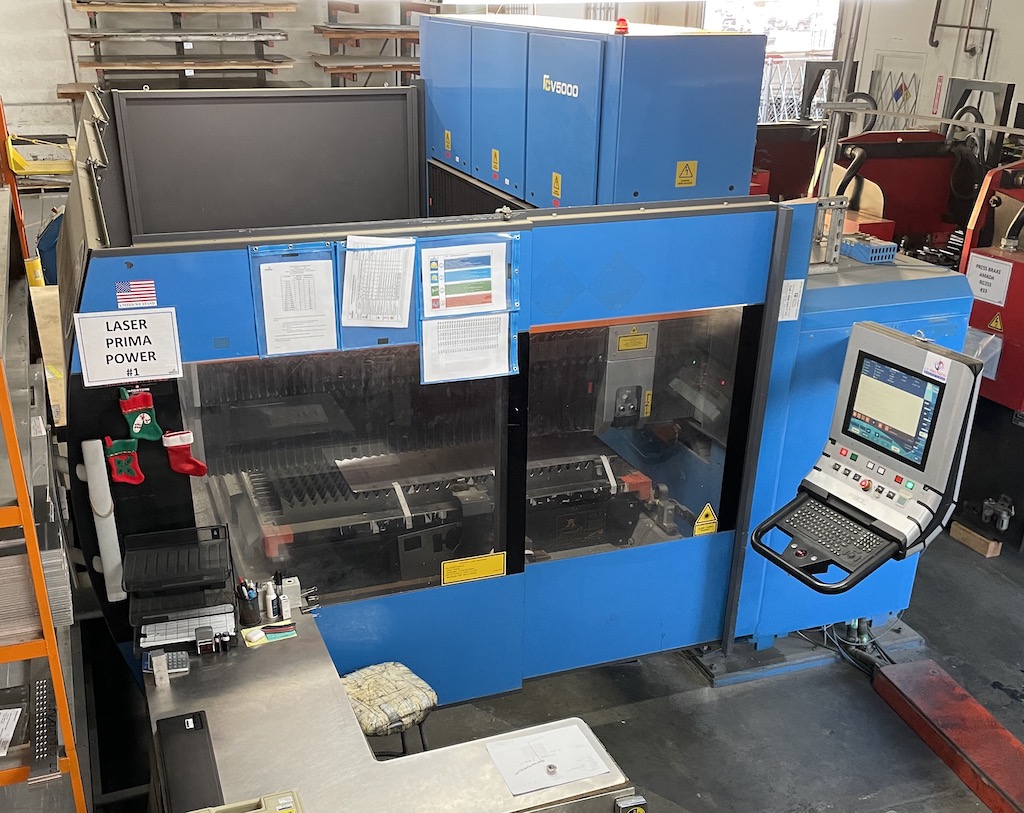

PRIMA POWER 5000 watt laser, model CV5000, PLATINO 1530,69 in x 129 in dual shuttle tables, max 3,300 kg capacity, 26,264 hrs at time of writing, 2014, sn 140117, sn 789 T 481 [USP]

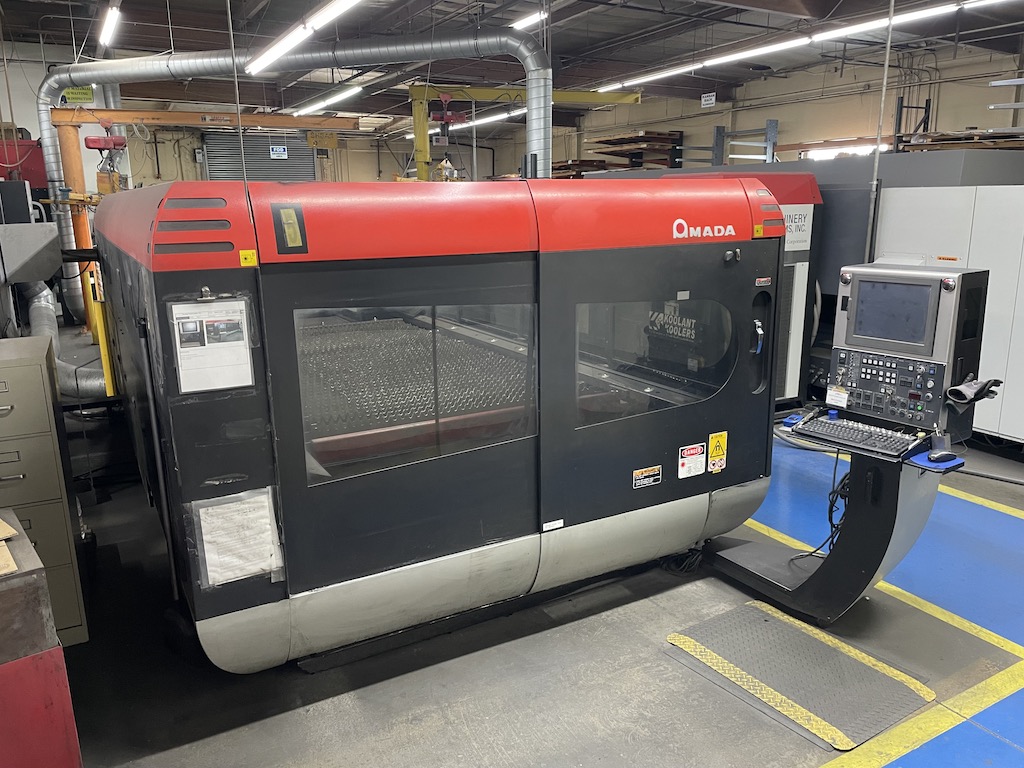

AMADA 4,000 watt laser, model LC 3015 F1NT, 4 ft x 8 ft dual shuttle table, fanuc laser C4000 59,106 hrs indicated at time of writing, 7 in lens, w spare 5 in lens, max simultaneous feedrate m/per/min (x/y 170m/min, max sheet size 3070 x 1550 x 100 (z axis), max material thickness 20 mm m.s., max material thickness 12 mm, max material thickness ( aluminium a5052) 10 mm, water chiller, *excludes dust collector, 2008, sn 28510139
TURRET PUNCH / COMBO

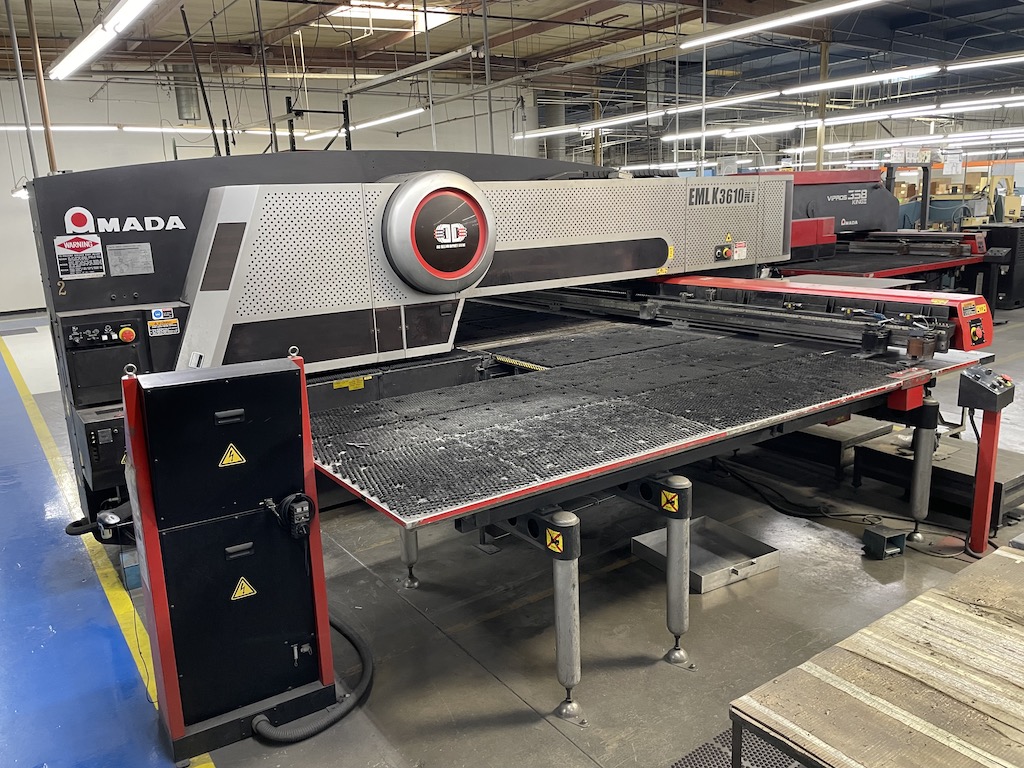

AMADA combination 4,000 watt laser and 30 ton turret punch, model EMLK 3610NT, 58 station w 4 auto index, sheet size punch 60 in x 120 in, laser 60 in x 100 in, combo 72 in x 120 in, Fanuc Laser C4000 39,395 hrs at time of writing, max sheet thickness 1/4 in ms, alum, ss, largest punched hole 4.5 in, x/y 400 hits/min at 1 in center, xy hitrate marking 1800 hpm, max laser speed 787 ipm, inverter chiller rke 15000a-va-uu, downflo 7.5 hp dust collector model adf4, 2010, sn 43612046 [2]

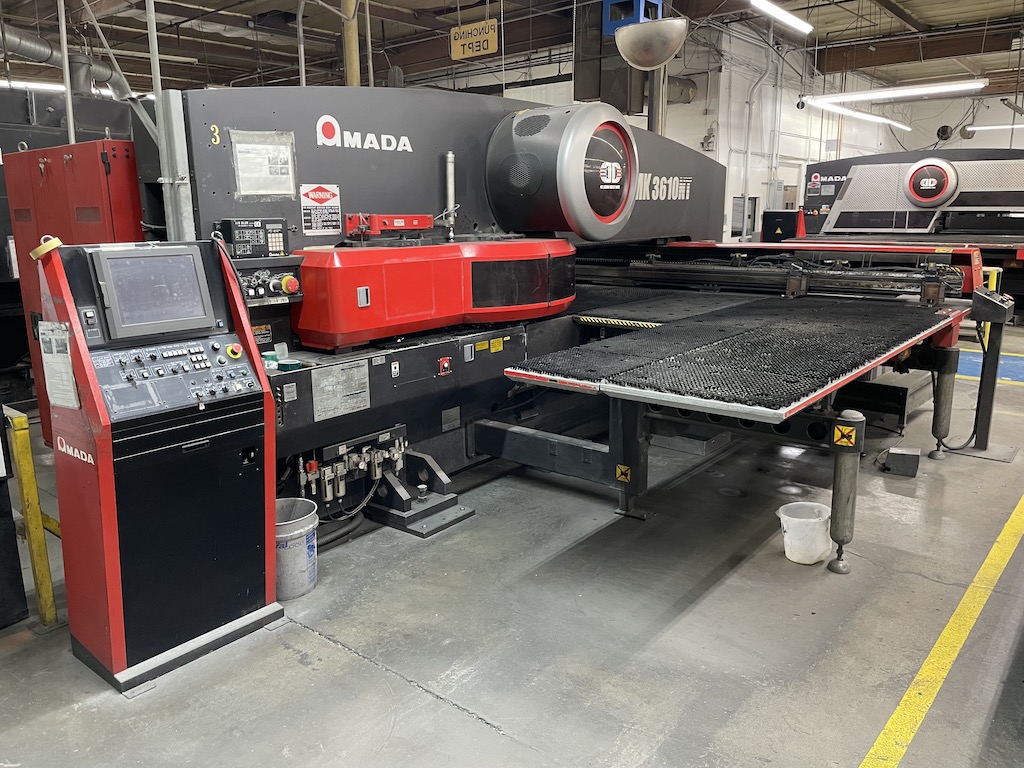

AMADA 30 ton electric turret punch, model EMK 3610NT, 58 stations w 4 auto indexing units, high speed ac servo direct twin drive, axis traverse distance 60 in x 98 in, max sheet size w auto positioning 60 in x 196 in, max material thickness 6mm alum, 4.5mm mild steel, 3mm stainless, 2010, sn 36102247 [3]
AMADA VIPROSS 358 KING II, 30 ton turret punch, 58 station turret w 4 auto index, table travel 50 in x 78.7 in, 52 in throat, max material thickness 1/8 in, max punch dia 4.5 in, max hit rate 1200 hpm, 2000, sn 35840263 [4] note: requires new battery
AMADA PEGA 345 King 30 ton turret punch model PEGA 304050, 58 station turret, 1994, sn AK450308 [USP]
AMADA MP1225NJ autofeed transfer table attachment, 4,400 lb table capacity, 1999, sn 12254130
CNC MACHINING

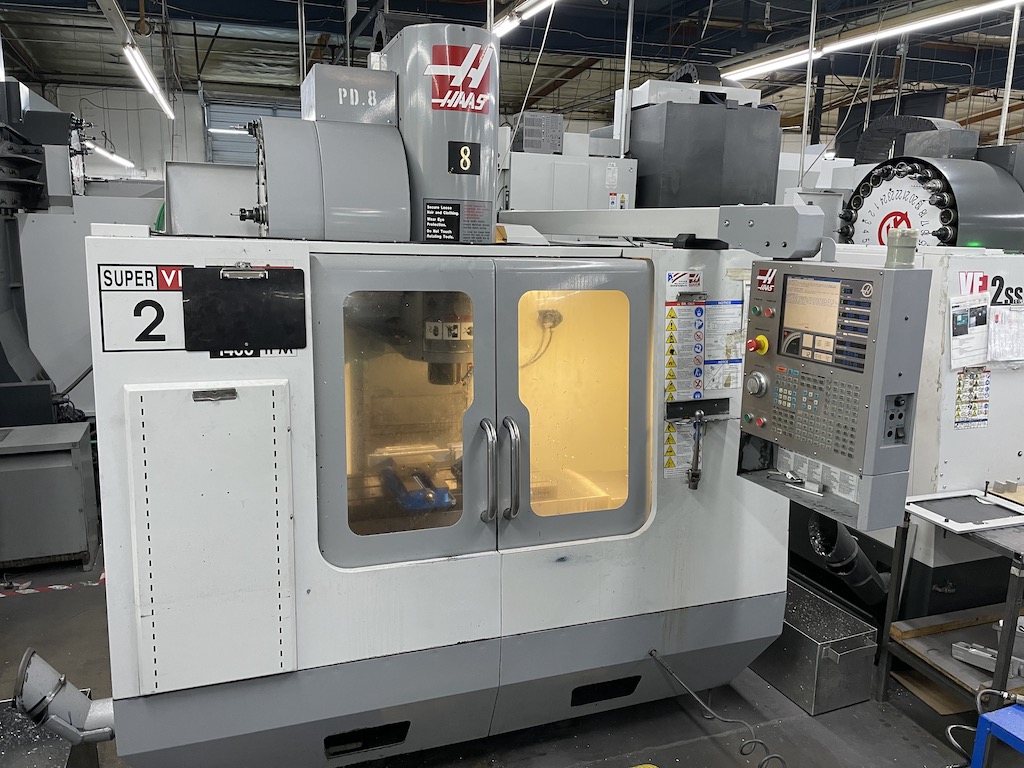

HAAS CNC VMC model Super VF2SS, 24 atc, cat 40, 12,000 rpm, worklight, coolant, 14 x 36 table, 2015, sn 1122404 [9]

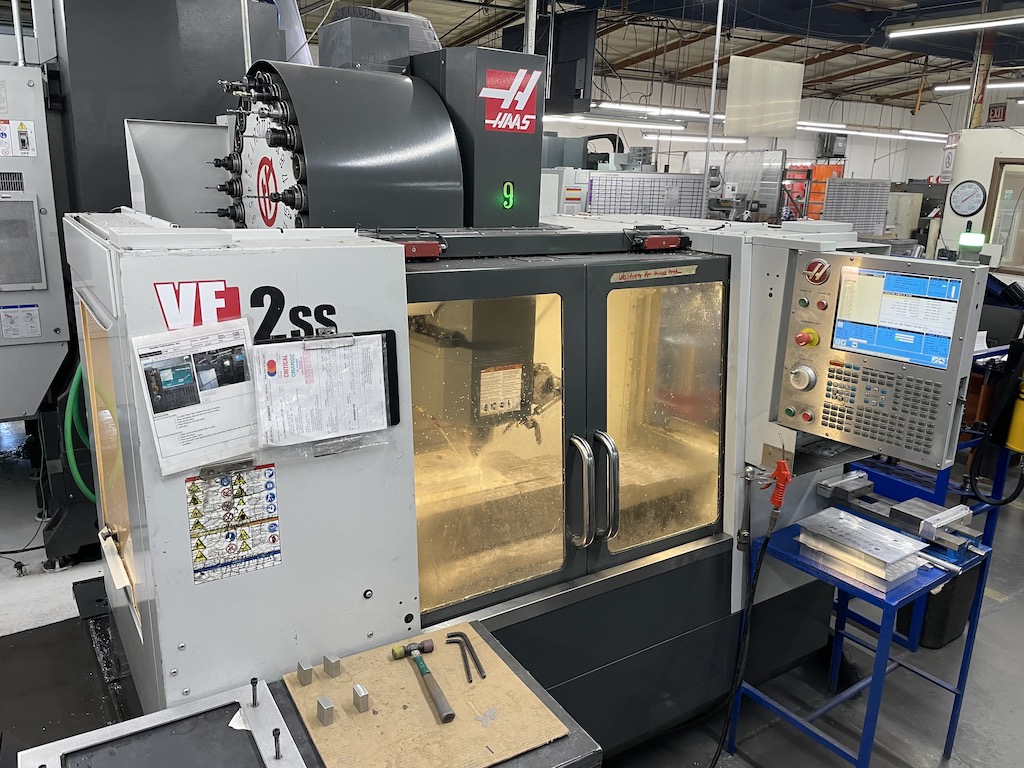

HAAS CNC VMC model VF-2SS, 24 atc, cat 40, 36 x 16 table, 12,000 rpm, high pressure coolant, worklight, renishaw probe, 2011, sn 1091018 [1]
HAAS CNC VMC model VF-2SS, 24 atc, cat 40, 36 x 16 table, 12,000 rpm, worklight, 2011, sn 1084723 [3]
HAAS CNC VMC model Super VF2SS, 24 atc, cat 40, 12,000 rpm, worklight, renishaw probe, 14 x 36 table, 2007, sn 1057196 [8]
HAAS CNC VMC model Super VF2SS, 24 atc, cat 40, 12,000 rpm, worklight, renishaw probe, 14 x 36 table, 2006, sn 47984 [6] excludes 4th axis trunion table
HAAS CNC VMC model Super VF2SS, 24 atc, cat 40, 12,000 rpm, worklight, renishaw probe, 14 x 36 table, 2004, sn 36479 [4] excludes 4th axis trunion table
HAAS CNC VMC model VFOE, 20 atc, cat 40, 36 in x 14 in table, 7,000 rpm, programmable coolant nozzle, 2000, sn 20020 [6] [USP]
HAAS CNC VMC model VFOE, 20 atc, cat 40, 36 in x 14 in table, 7,000 rpm, programmable coolant nozzle, 1999, sn 18790 [7] [USP]
HAAS CNC VMC model VFOE, 20 atc, cat 40, 36 in x 14 in table, 7,000 rpm, programmable coolant nozzle, 1999, sn 18801 [5] [USP]
HAAS CNC VMC model VF2, 20 atc, cat 40, 36 in x 14 in table, 7,000 rpm, programmable coolant nozzle, 1996, sn 7565 [4] [USP]
PRESS BRAKES

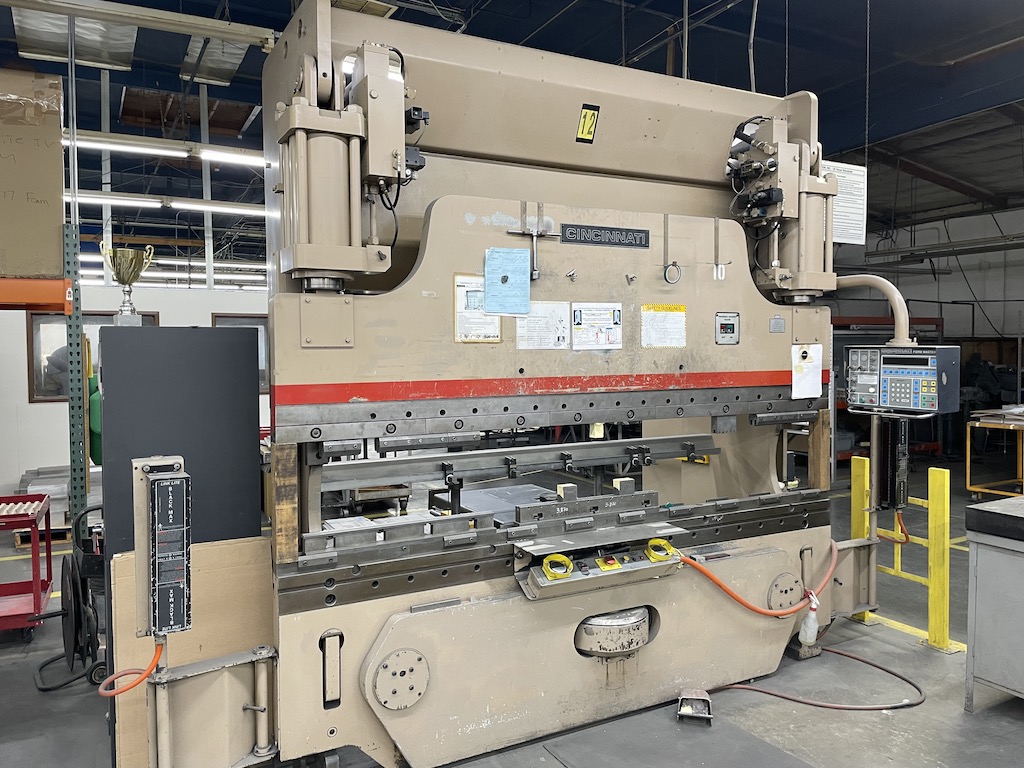

CINCINNATI 10 ft x 135 ton hydraulic press brake model 135 FMII, 103 in between frames, max stroke 14 in, form master II control, crowning, 2 axis back gauge, sn 49751 [12]

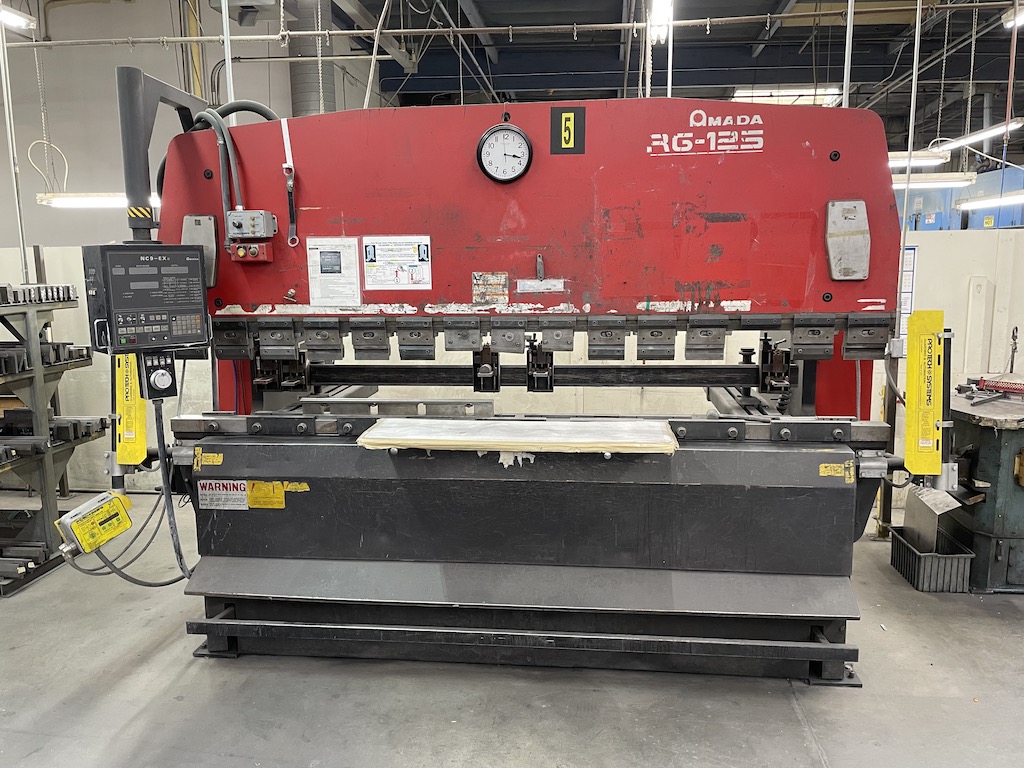

AMADA RG-125 press brake, 125 ton, 118.2 in table length, NC9-EXII control, 2 axis back gauge, 118.2 in bed, 122.1 max bending, 100.5 in between uprights, 15.7 in throat, 3.9 in stroke, 1995, sn 01251747 [5]

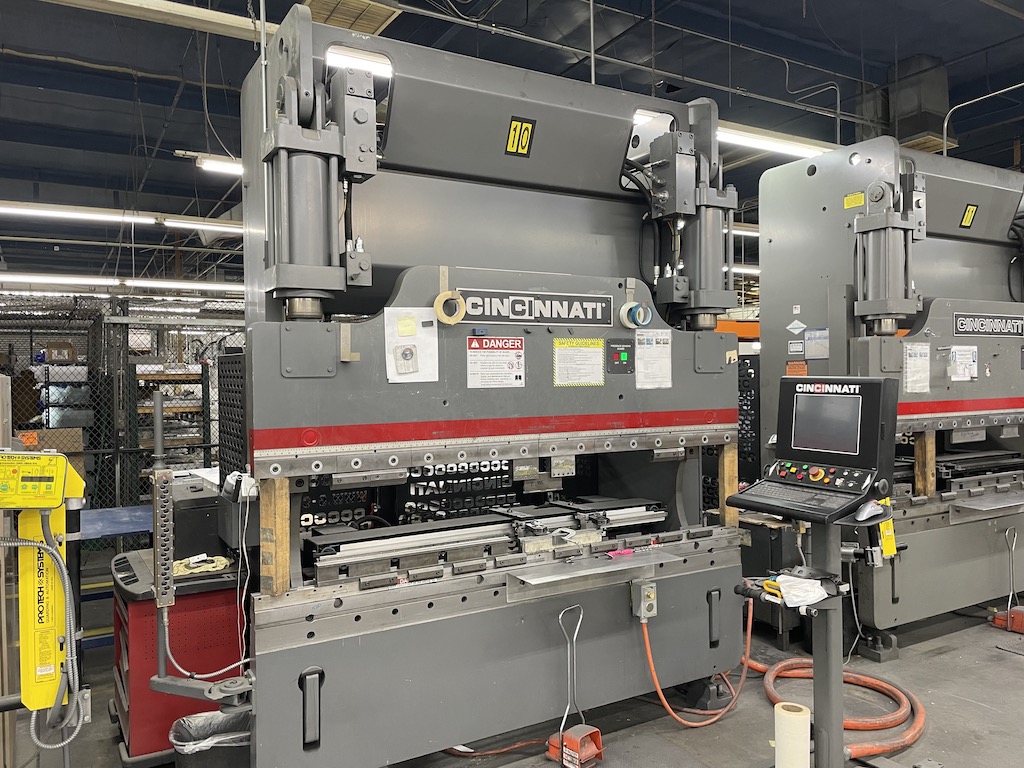

CINCINNATI 8 ft x 90 ton hydraulic press brake model 90 PF+6, 78″ ft between frames, max stroke 14 in, pro form control, 2 axis back gauge, auto crowning, 2016 sn 56176 [10]
CINCINNATI 8 ft x 90 ton hydraulic press brake model 90 PF+6, 78″ ft between frames, max stroke 14 in, pro form control, 2 axis back gauge, auto crowning, 2013 sn 55287 [11]
CINCINNATI 8 ft x 90 ton hydraulic press brake model 90 FMII, 6 ft between frames, max stroke 14 in, form master II control, 2 axis back gauge, crowning, sn 51489 [9]
CINCINNATI 10 ft x 90 ton hydraulic press brake model 90 FMII, 78.8 in bed, 82.1 in max bending, 6 ft between frames, max stroke 14 in, 15.7 in throat, 3.9 in stroke, form master II control, 2 axis back gauge, crowning, sn 49509 [1]
AMADA RG 50, 50 ton press brake, 78.8 in bed, nc9-ex control, 2 axis back gauge, sn 50505801 [4]
AMADA 50 ton press brake model RG 50, 78.8 in bed, 15.76 throat, NC9-EXII controls, 2 axis back gauge, 1995, sn 508900
AMADA 4 ft x 35 ton press brake model RG 35S, tabe length 47.3 in, 7.88 in throat, 3.94 in stroke, 2 axis back gauge 1984, sn 352639
AMADA RG 35S press brake, 35 ton x 53″ bed, NC9-EX control, 2 axis back gauge, 47.3 in bed, 49.3 in max bending, 40.2 in between uprights, 7.88 in throat, 3.94 in stroke, sn 353194 [6]
AMADA RG 35S press brake, 35 ton x 47.3 in bed, NC9-EXII control, 2 axis back gauge, 47.3 in bed, 49.3 in max bending, 40.2 in between uprights, 7.88 in throat, 3.94 in stroke, 2000 sn 357290 [7]
AMADA RG 35S press brake, 35 ton x 47.3 in bed, NC9-EXII control, 2 axis back gauge, 47.3 in bed, 49.3 in max bending, 40.2 in between uprights, 7.88 in throat, 3.94 in stroke, 2000 sn 357302 [8]
AMADA 35 ton press brake model RG 35S, 47.3 in bed, 7.88 throat, 3.94 in stroke, 14.58 open height, 1998, sn 357028 [disconnected] [USP]
AMADA 25 ton press brake model RG 25, 47.3 in bed, 7.88 throat, 3.94 in stroke, 14.58 open height, 1984, sn 255053 [disconnected] [USP]
FABRICATION
AMADA shear, model M-2545, 9 ft x 3/16 in capacity, 60 spm, squaring arm, sn 2501316
AMADA CS-220 notcher, 9 in x 9 in

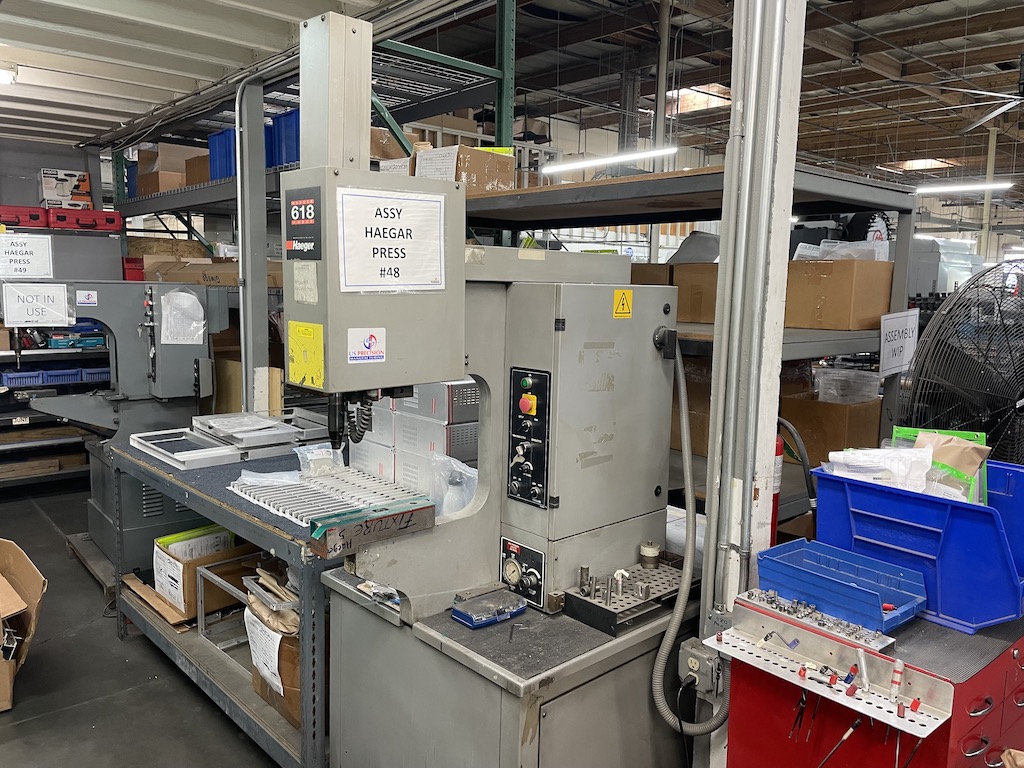

HAEGER 618-1H insertion press, 1999, sn 06H00737 [4]
HAEGER 618-1L insertion press, 2001, sn 06L00933 [5]
HAEGER HP6-C insertion press, sn 2011 [6]
HAEGER 618-1H insertion press, modular autofeed system 8 in dia bowl, 2000, sn 06H00912 [10]
HAEGER 618-1H insertion press, modular autofeed system 8 in dia bowl, 2000, sn 06H00999 [9]
HAEGER 618-1H insertion press, modular autofeed system 8 in dia bowl, 2000, sn 06H00913 [8]
HAEGER insertion press model 618H, 1998, sn 06H00564 [USP]
HAEGER insertion press model HP6-CX [USP]
HAEGER insertion press model HP2.5-A, sn 066 [USP]
NEW DIMENSION power rolls, model mp6059, initial pinch 73 in rolls, 4 in diameter, sn 06021874 [USP]
ROPER WHITNEY pexto slip rolls model 381D, 22 ga capacity, 32 in rolls, 2 in dia, sn 6024-9-96 [USP]
FINISHING

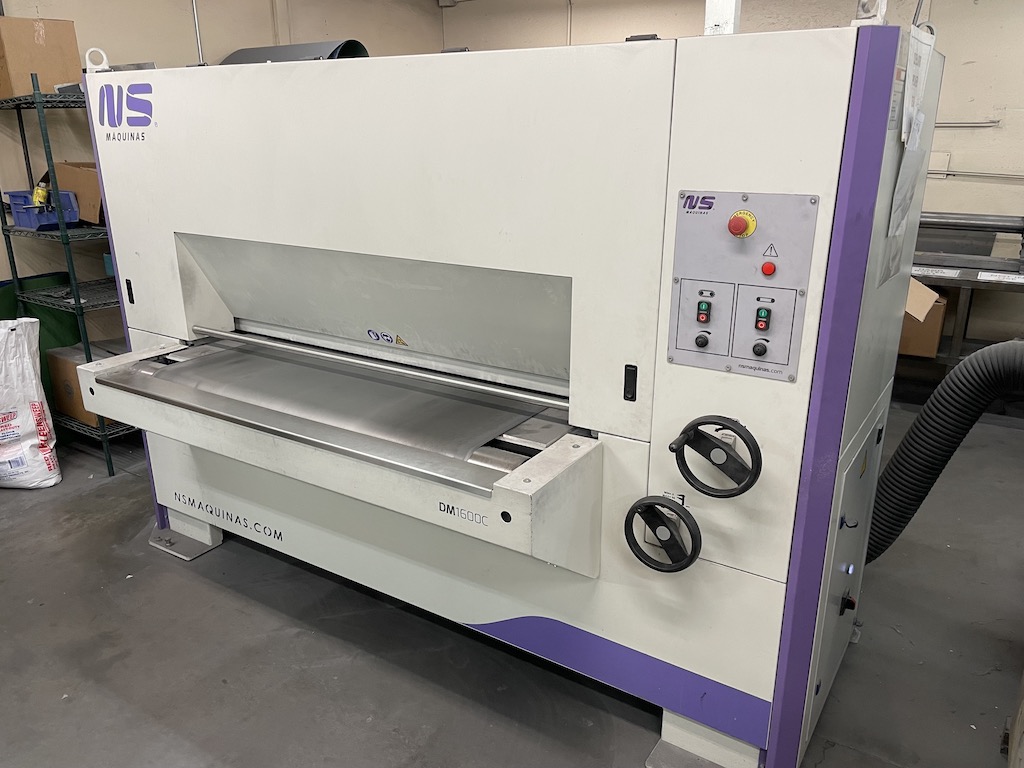

NS MAQUINAS belt sander model DM1600C, 52 in belt, 2017, sn 2820 [USP]
TIMESAVERS 36″ single head belt sander, model 137-1hpm, sn 50640M [USP]
(2) FINISH PRO 40″ single head belt sander, adjustable height [3]
AEM 36″ single head belt sander
(3) wet type dust collectors
RICHWOOD industries vibratory bowl, model VA 35, 36 in dia, control panel, sn 05010104
LAGUNA 3 HP dust collector model mdc3560-0145, 2012, sn 771210113
C&M topline vibratory deburr bowls, approx 18″ dia
vibratory barrel model 300 WT, approx. 35 in x 12 in, sn 301117.1
WILLIAM BOULTON vibratory bowl, type fm 20, approx 58″ dia, sn 3547
AEM time saver belt sander, model 407-37, 36″ belt, single head, sn 7747, includes ICM 3 hp dust collector model UC1000, sn uc100358127
GRIZZLY model H2936 vacuum sanding table, 36 in x 24 in, 1/2 hp, 2017, sn f029291
Custom downdraft table approx 5 ft x 3 ft
BURR KING model 760 deburr, 1.5 HP [USP]
CMM

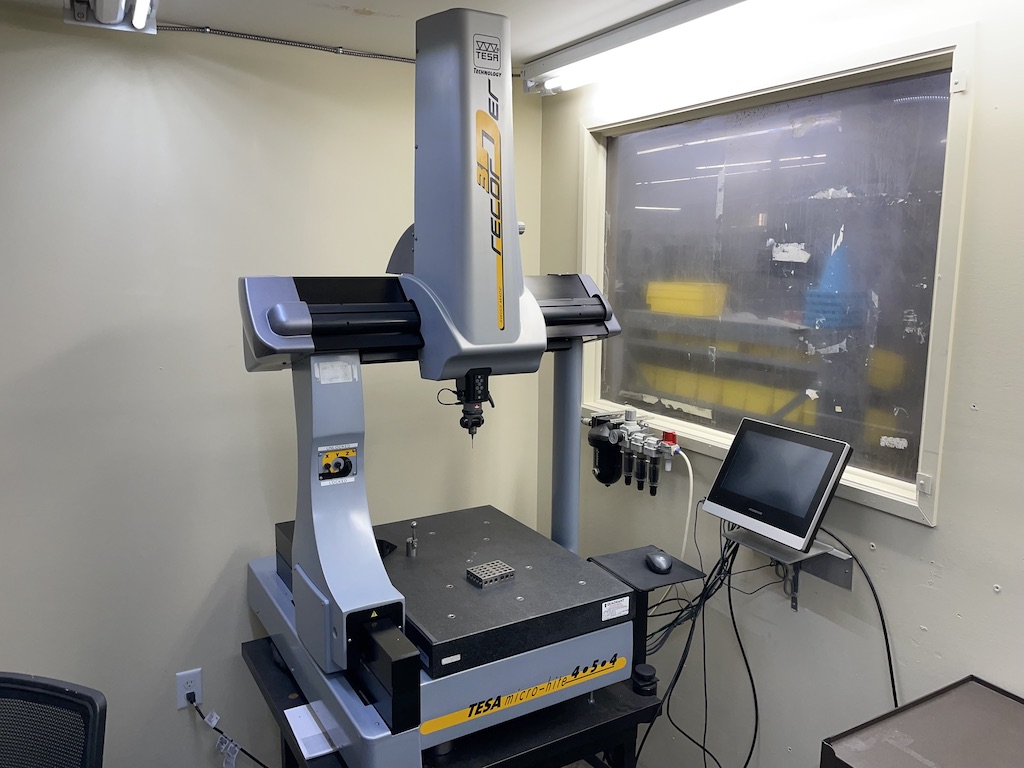

TESA Micro Hite 4-5-4 CMM, 22 in x 30 in table, heidenhain controls, 2011, sn 11090025
TOOLROOM

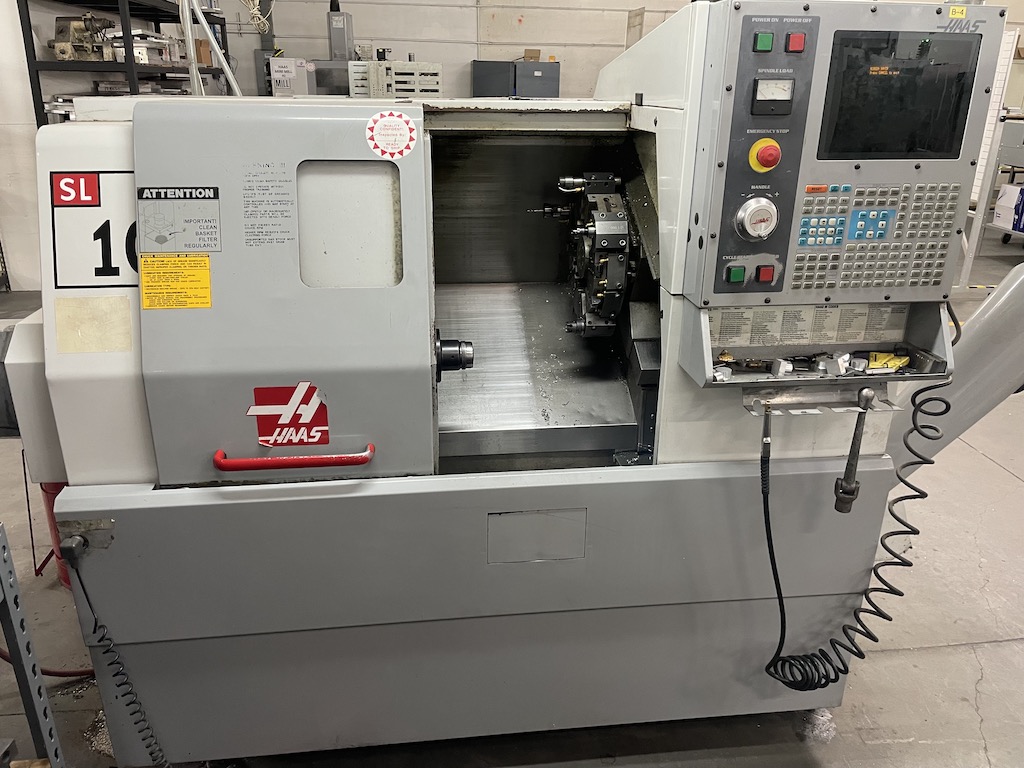

HAAS SL10 CNC Lathe, 12 station turret, collet chuck, 2002, sn 65350, #9 [USP]
HAAS Mini Mill, 30 in x 12 in table, cat 40, 10 atc, programmable coolant nozzle, 2003, sn 30514
VICTOR Lathe model 1630B, 16 in x 30 in, 8 in 3 jaw chuck, tailstock, tool post, newall DRO
CHEVALIER 618 surface grinder, sn a386a028
LAGUN Vertical mill, 10 in x 44 in table, wizard 150 plus DRO [USP]
ELECTRO Mechano gang drill table, w 4 electro mechano model 601J drill heads, 82 in x 30 in table, [USP]
AMADA Horizontal bandsaw model HA-250W, sn 25350708
DOALL Vertical bandsaw, model 2013-v3, 20 in throat, 2000, sn 526-00385 [USP]
FURNACES

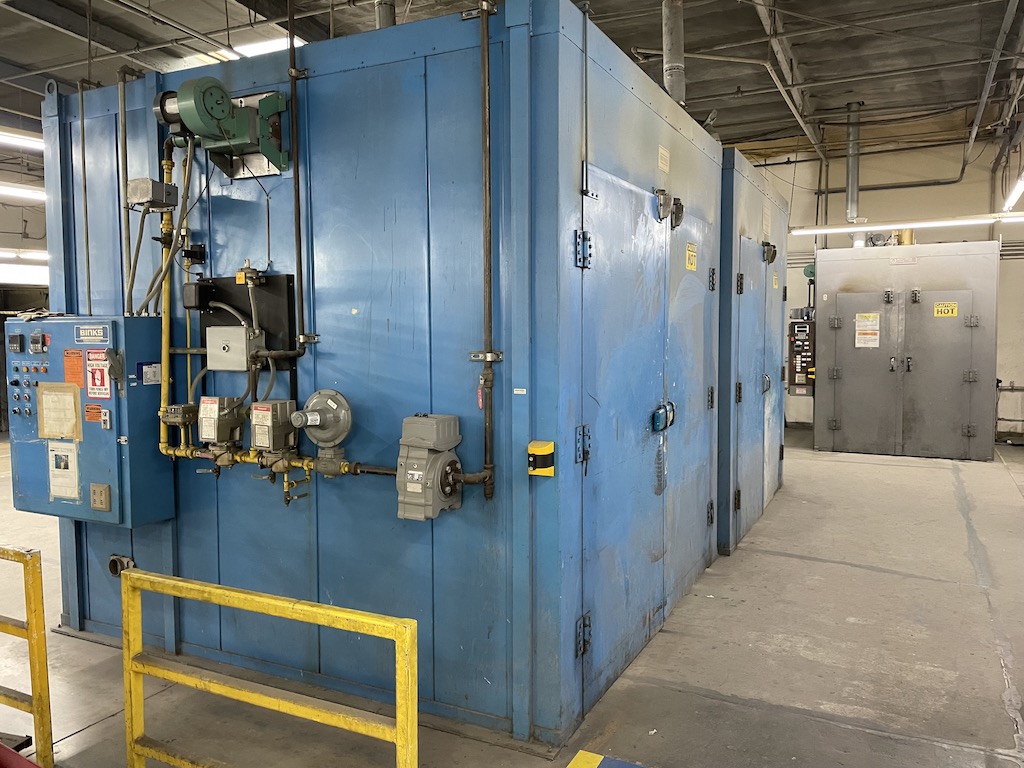

BINKS 500,000 btu natural gas furnace, model bwn-810-86, max temp 500 deg f, approx internal dimensions 8 ft wide, 10 ft deep, 8 ft high, doors on front and back, approx exterior dimensions 125 in high, 150 in width, 132 in deep, sn 044629705 [7]
BINKS 500,000 btu natural gas furnace, model bwn-810-8g, max temp 500 deg f, wisconsin oven watch dog controls, approx internal dimensions 8 ft wide, 10 ft deep, 8 ft high, doors on front and back, approx exterior dimensions 125 in high, 140 in width, 132 in deep, sn 019788608 [6]
WISCONSIN oven, 350,000 btu natural gas furnace, model swn-57-7g, max temp 500 deg f, WISCONSIN oven watch doc controls, interior dimensions approx 5 ft wide, 7 ft deep, 7 ft high, exterior dimensions approx 100 in wide, 96 in deep, 115 in high, sn 097400412 [8]
AFC oven / paint booth interior dimensions approx 16 ft wide x 12 ft deep, Siemens control
PAINT
Paint booth, approx 15 ft x 15 ft w fume extraction [pso2]
NORDSON sure coat paint pump and gun, part 1075616a, sn aa08b00171
Paint booth, approx 18 ft wide x 12 ft deep w fume extraction [pso1]
BINKS paint pot w gun
Paint booth approx 12 ft wide x 9 ft deep x 8 ft high
Paint booth approx 9 ft wide x 9 ft deep x 8 ft high
VEHICLES

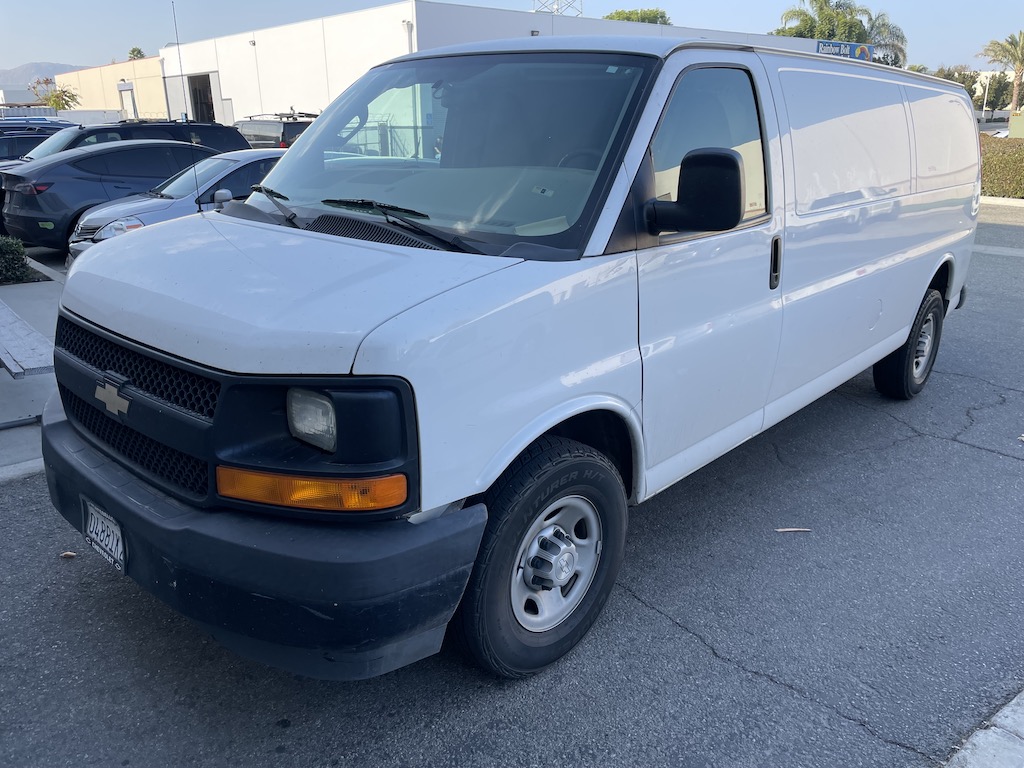

2017 CHEVROLET Express cargo van, 104,239 miles at time of writing, VIN 1GCWGBFF6H1224196 [USP]
FORD van [USP]
MATERIAL HANDLING

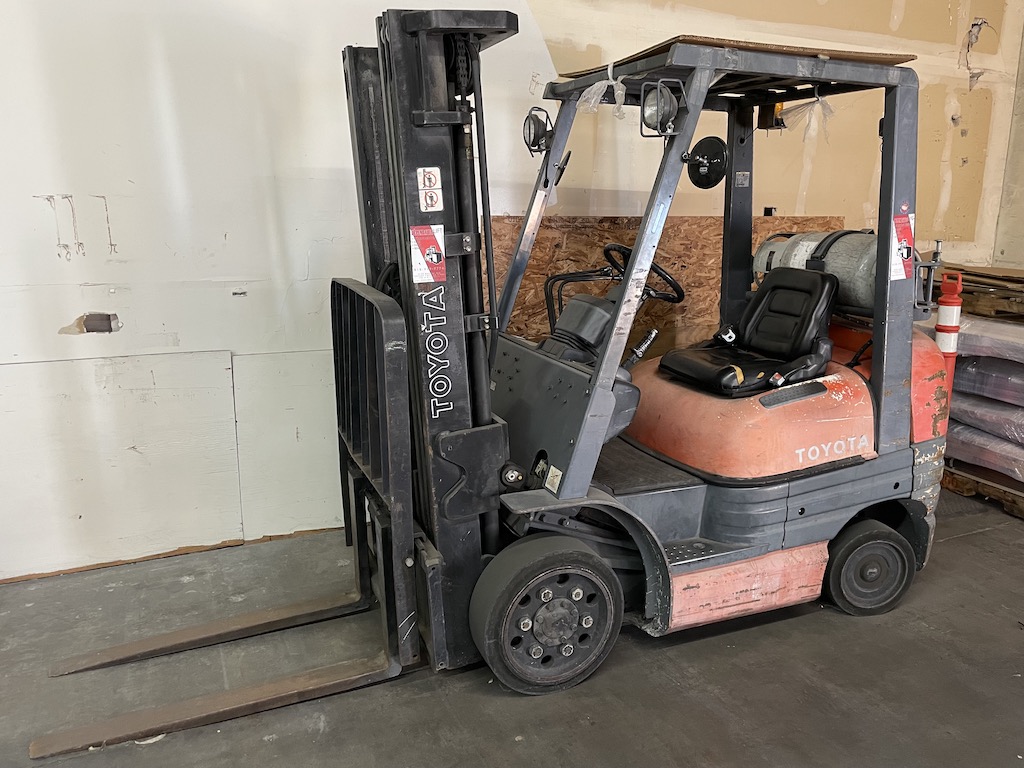

TOYOTA 5,000 lb LPG forklift, model 5FGC30, 3 stage mast, side shift, sn 70908
TOYOTA 4,900 lb capacity lpg forklift, model 42-6FGCU25, sn 75668
1/2 ton jib crane, approx. 10 ft height, 12′ span
VAC-PAC VPF-1S, 1,200 lb capacity suction lift
MISC

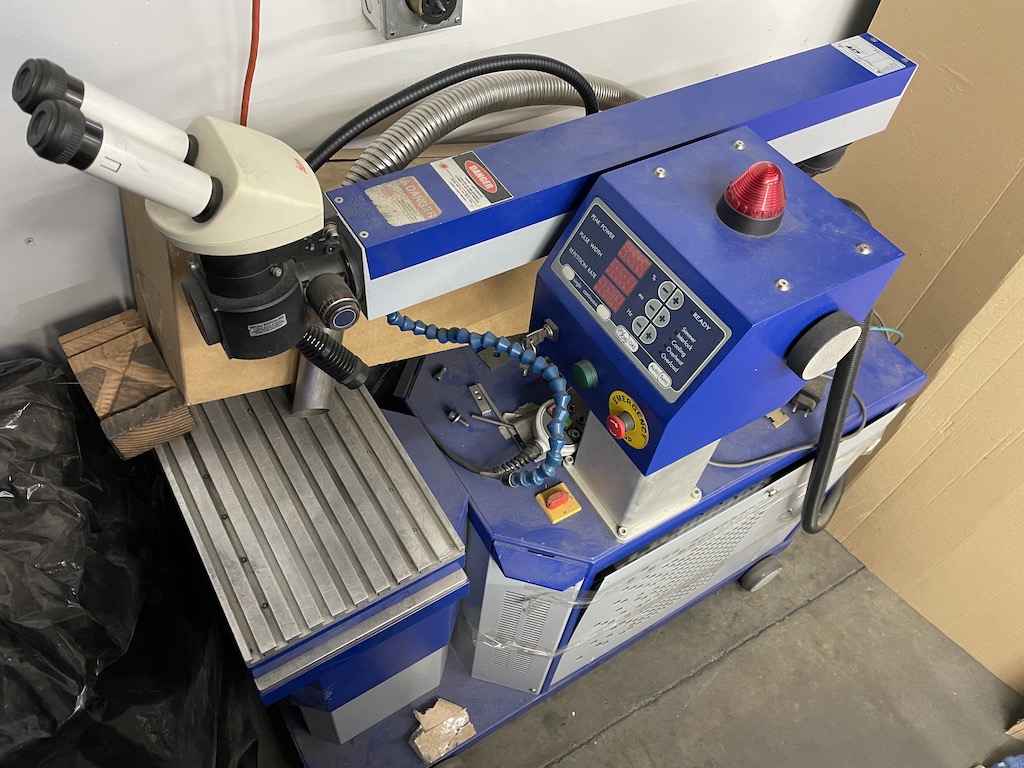

OR LASER TECHNOLOGY microwelder model LRS 120, leica optical head, 2007, sn 12080103 [USP]
(6) MILLER & LINCOLN ELECTRIC welders
AP SEEDORF 50 kva spot welder, 27 in throat, sn 922 [5]
AP SEEDORF 50 kva spot welder, 30 in throat, sn 671 [4]
KOYO GIKEN 30 kva spot welder, model myspot NK-21HE810-M, sn 02-01-119 note: disconnected outside [USP]
(2) WILSON tool sharpeners
heavy duty weld tables
SULLAIR 60 HP air compressor model ls12-60h acac, skid mounted, sn 003-110668

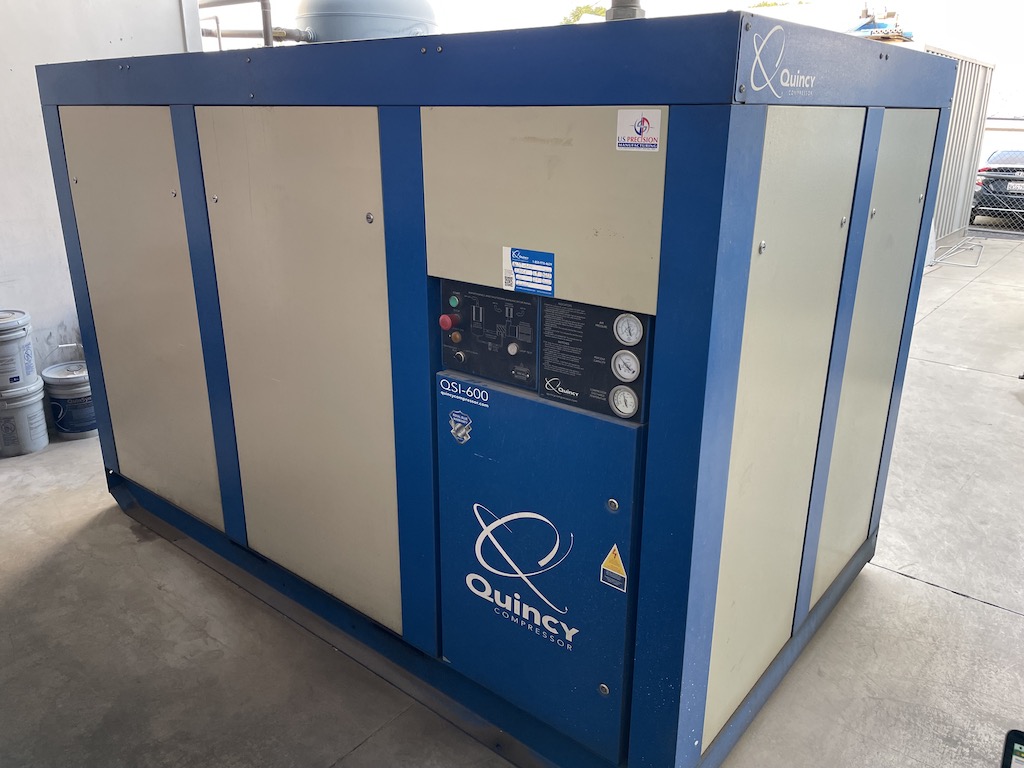

QUINCY air compressor model QSI-600
(6) 20′ sea containers
